Core Cable Copper Wire 0.05-0.64 mm Making Bunchers Twisting Winding Bunching Extrusion Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots

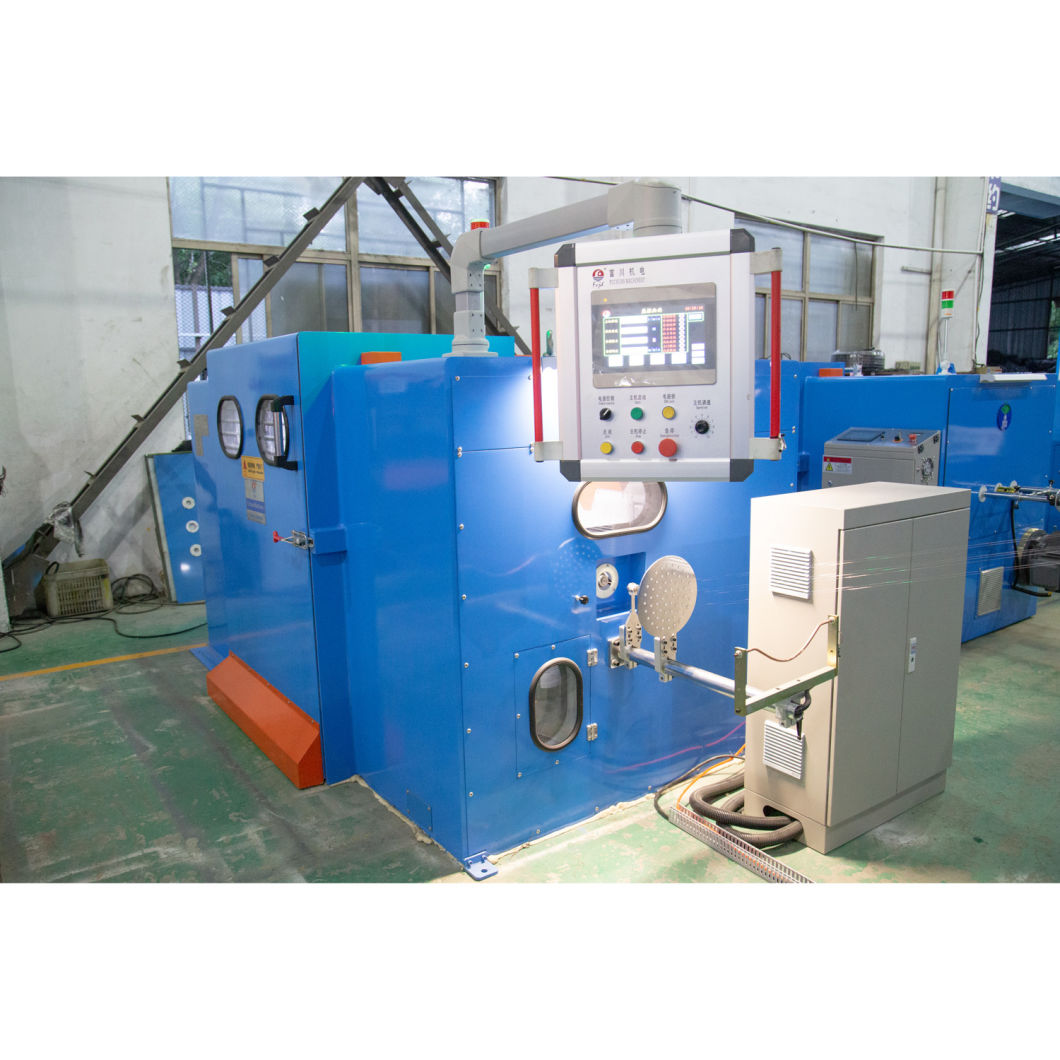

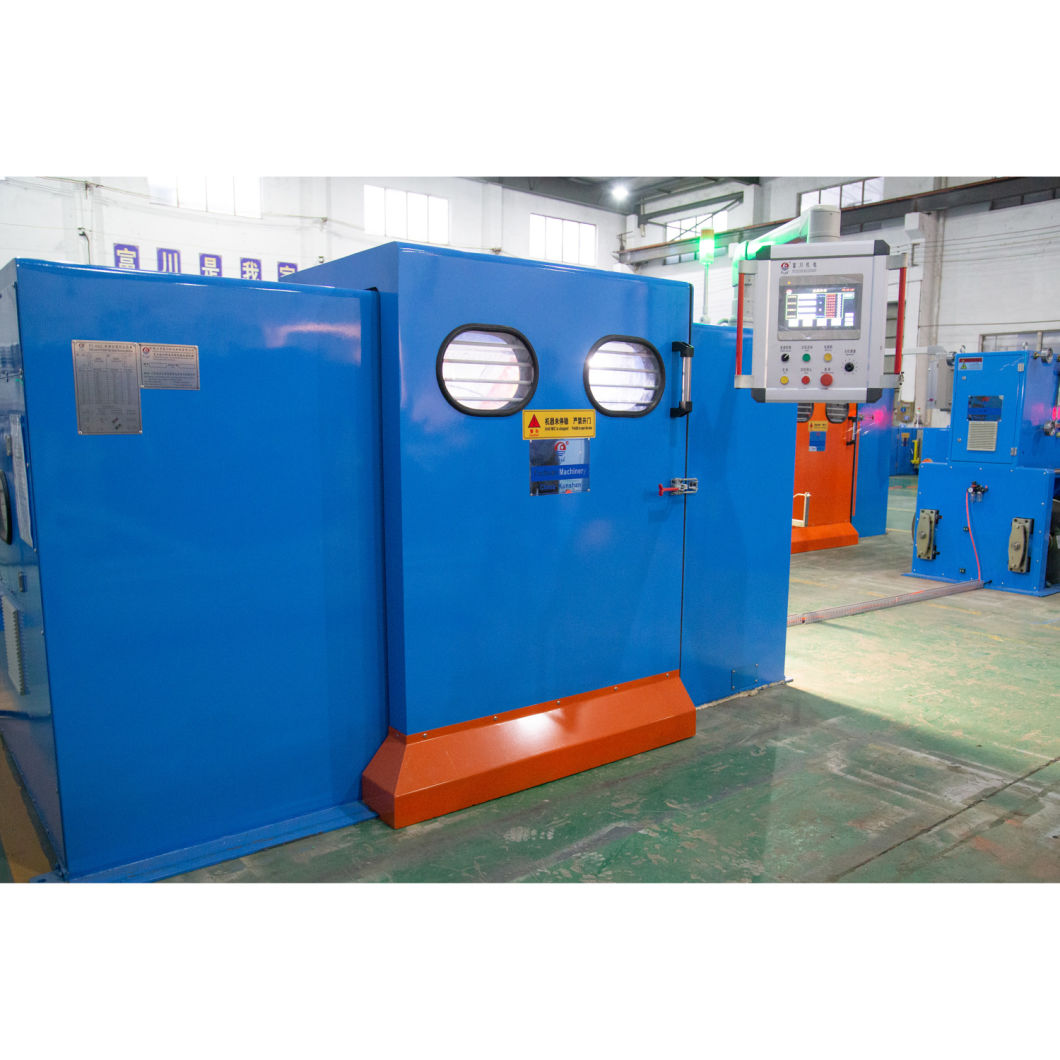

Series for model B normal wire high speed bunching machine and double twist bunching machine
1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.
2. Usage:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.
3. Technical Parameter:
Single Wire Dia: φ 0.38~φ 1.7mm
Bunching Section Area: 1.0~16mm2
Pitch: 20-160(34 kinds of pitches)
Direction of Lay: Optional for right or left
Take-up Bobbin: φ 800*φ 80*600mm
Max Rotating Speed: 1600(3200twist)
Main Motor Power: 15KW
Inverter Power: 15KW
Tension Control Method: Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin.
Magnetic Powder Clutch: 10kgf
Protection: Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake Mode: Electromagnetic Brake
Traversing Method: Rolling ring drive units, winding pitch and breadth are adjustable.
Operation Mode: Touch Screen Operation
Dimension: 3800L*2000W*1900H
For more details, please feel free to contact me.
