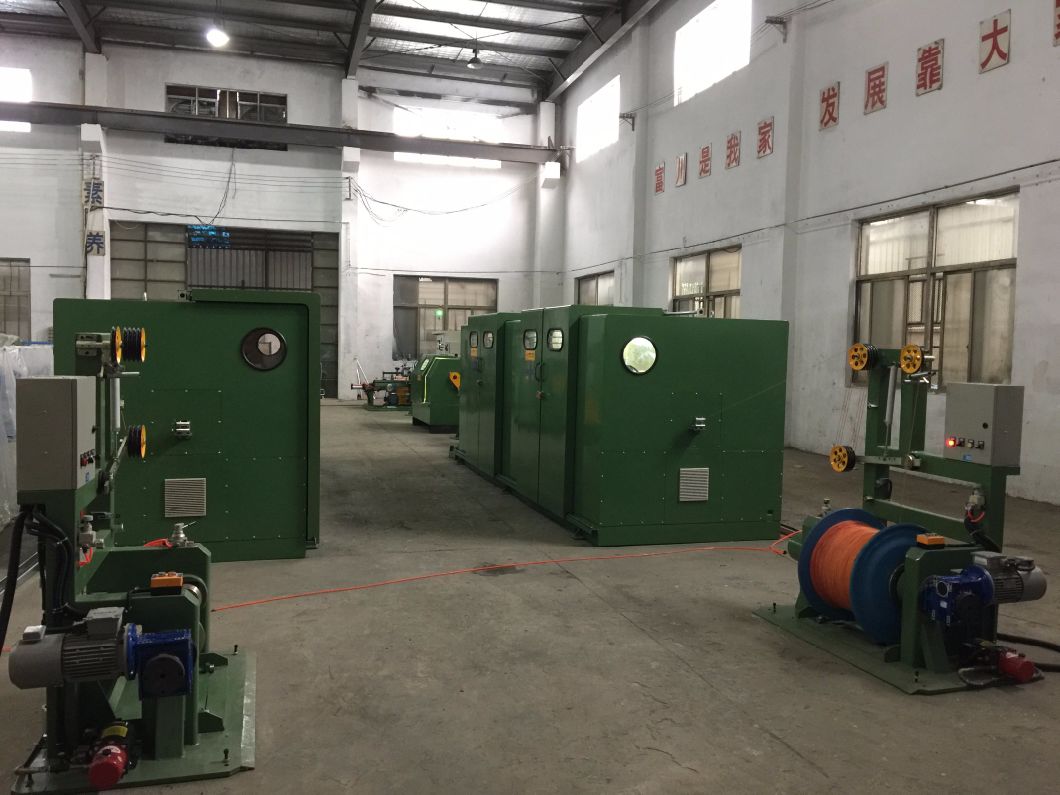

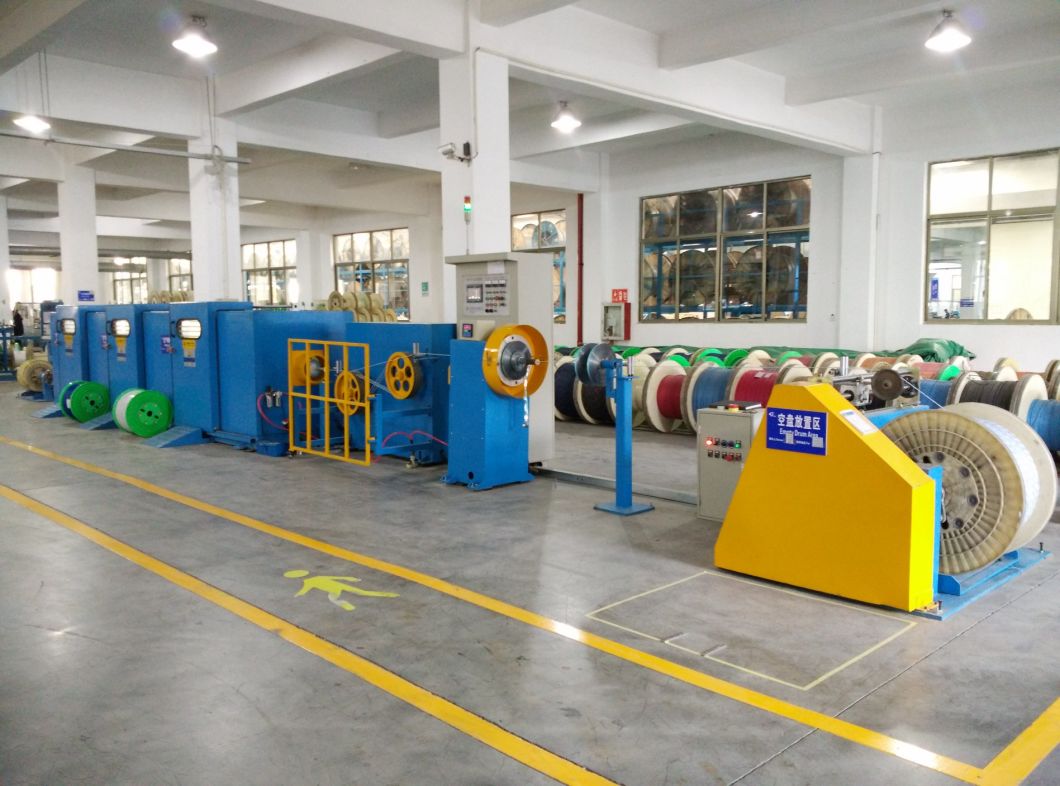

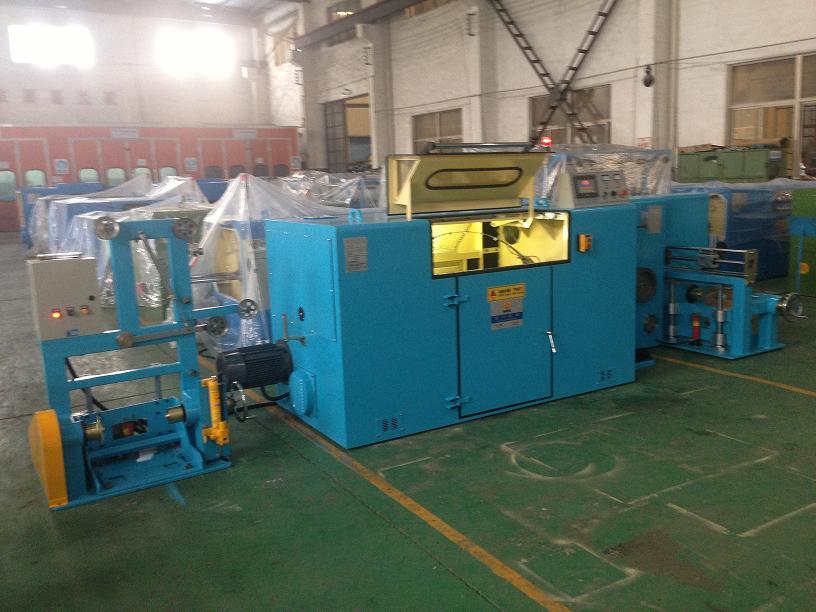

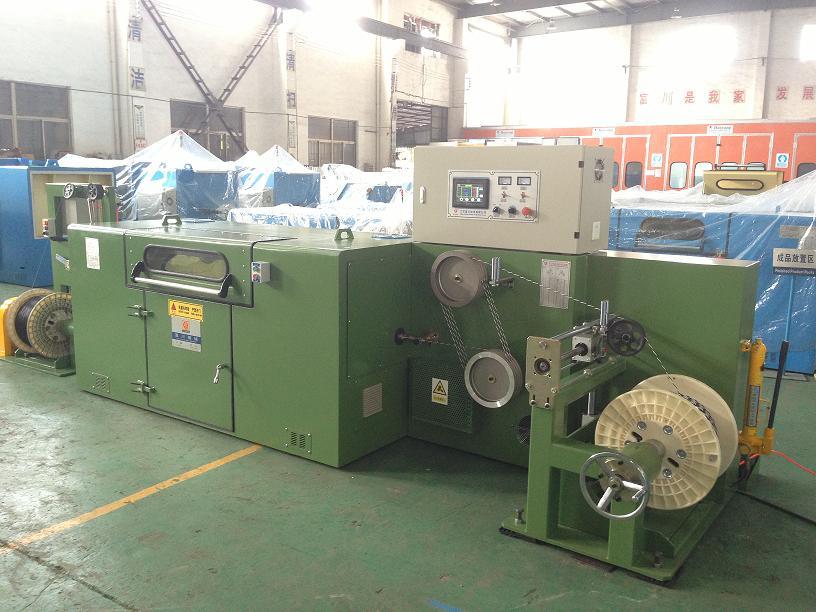

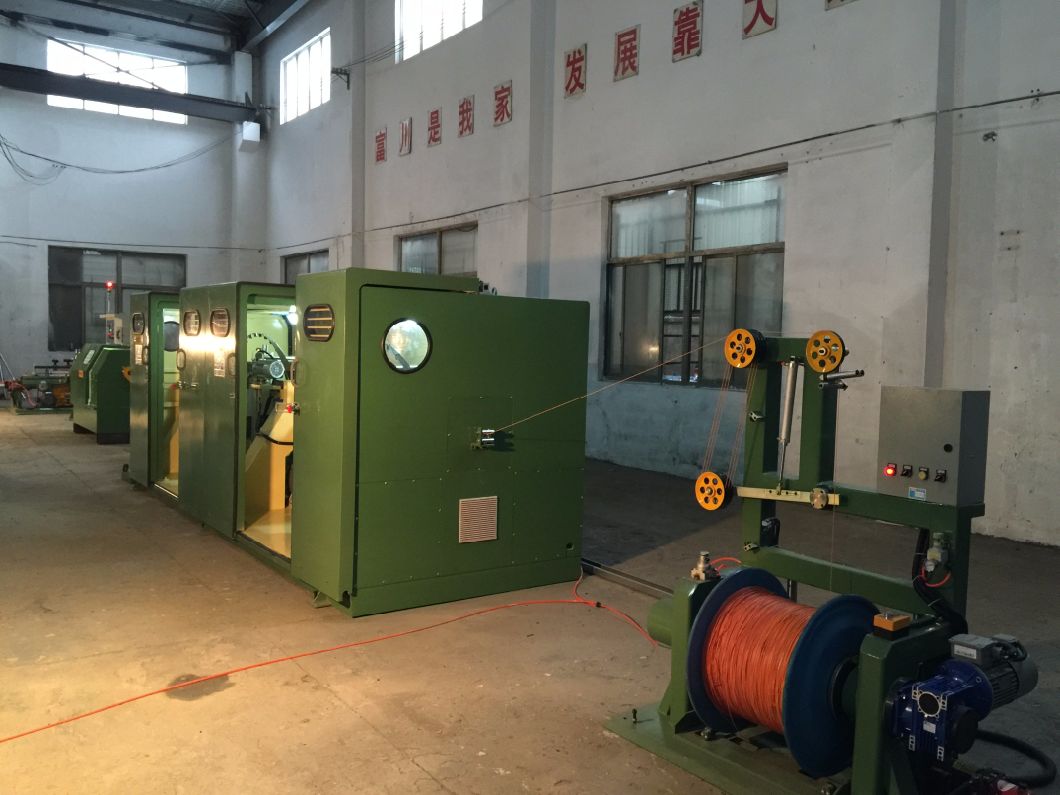

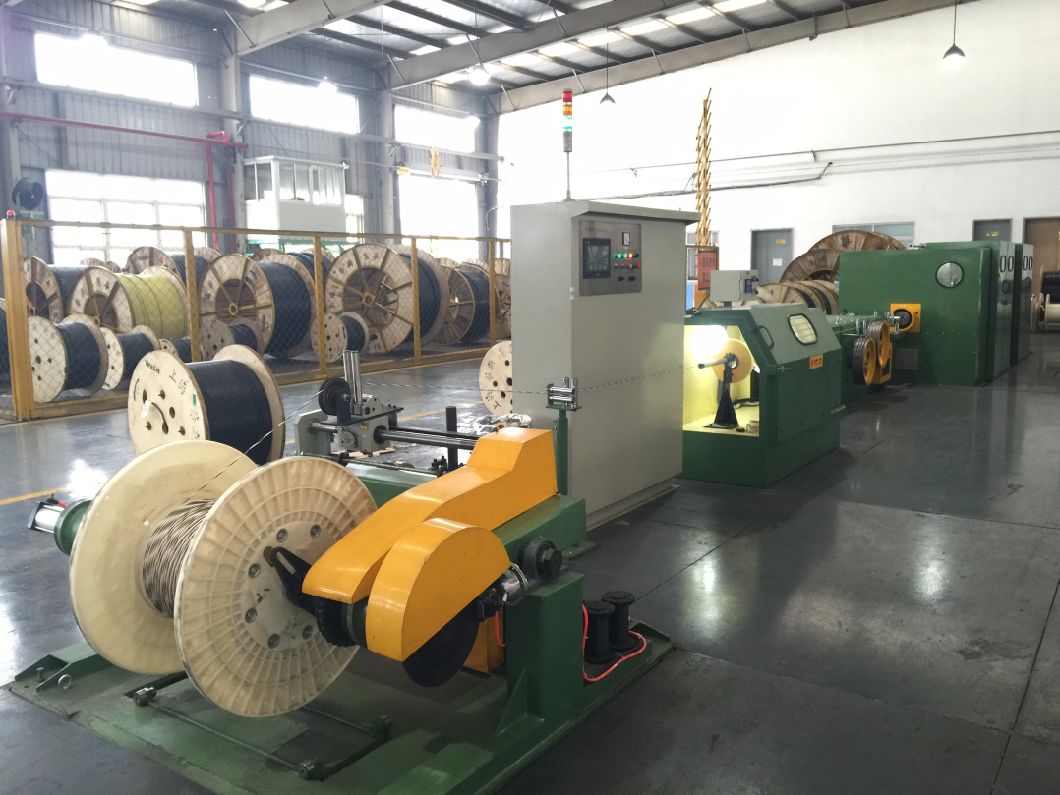

Double Twist Cable Copper Wire Winding Cutting Plastic Extrusion Extruder Bunching Buncher Coiling Twister Making Drawing Recycling Machine
-
12months
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Core Wire From 1.0-3.2mm
It is applied for high frequency date cable no torsion twist,fit for 2-7pcs of core wire cabling or 2-4pcs core wire cabling and with filling material,and achieve the bundling function,Machine is magnetic stable tension pay off,this cabling type,make the insulated core wire interlace uniformly,avoid the nonuiform twist force,thus make the finished wire with the uniform,precision pitch.Highly improved the quality and stablility of the cable wires.
Equipment Models FC-500E(3+1) FC-500E(6+1) FC-630E(3+1) FC-630E(6+1) Core wire single wire dia(mm) φ1.0~φ3.2 φ1.0~φ3.2 φ2.0~φ5.0 φ2.0~φ5.0 Core wire stranding outer dia(mm) φ2.0~φ7.5 φ2.0~φ9.6 φ4.0~φ11.5 φ4.0~φ15.0 Pitch(mm) 10-100(computer pitch) 20-160(computer pitch) Direction of Lay optional for right or left Max Rotating Speed(rpm) 1200 1000 1000 800 Tension control method magnetic tension control, can be adjust outside machine (pay off bobbin size) φ500 bobbin Φ630 bobbin (filling material) cotton rope, yarn, fiber (paper wrapping machine) centre wrapping or stable tension wrapping machine (paper taping size) ( outside dia φ300*internal hole φ51*width10~40mm) hauling wheel diameter φ410 φ510 take up bobbin φ630-800(bobbin) φ1000-1250(bobbin) Protection Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived. Traversing Method ,Rolling ring drive units, winding pitch and breadth are adjustable. pay off lifting type electric hydraulic/lead screw lifting take up lifting type electric hydraulic/lead screw lifting It is applied for high frequency date cable no torsion twist,fit for 2-7pcs of core wire cabling or 2-4pcs core wire cabling and with filling material,and achieve the bundling function,Machine is magnetic stable tension pay off,this cabling type,make the insulated core wire interlace uniformly,avoid the nonuiform twist force,thus make the finished wire with the uniform,precision pitch.Highly improved the quality and stablility of the cable wires.
