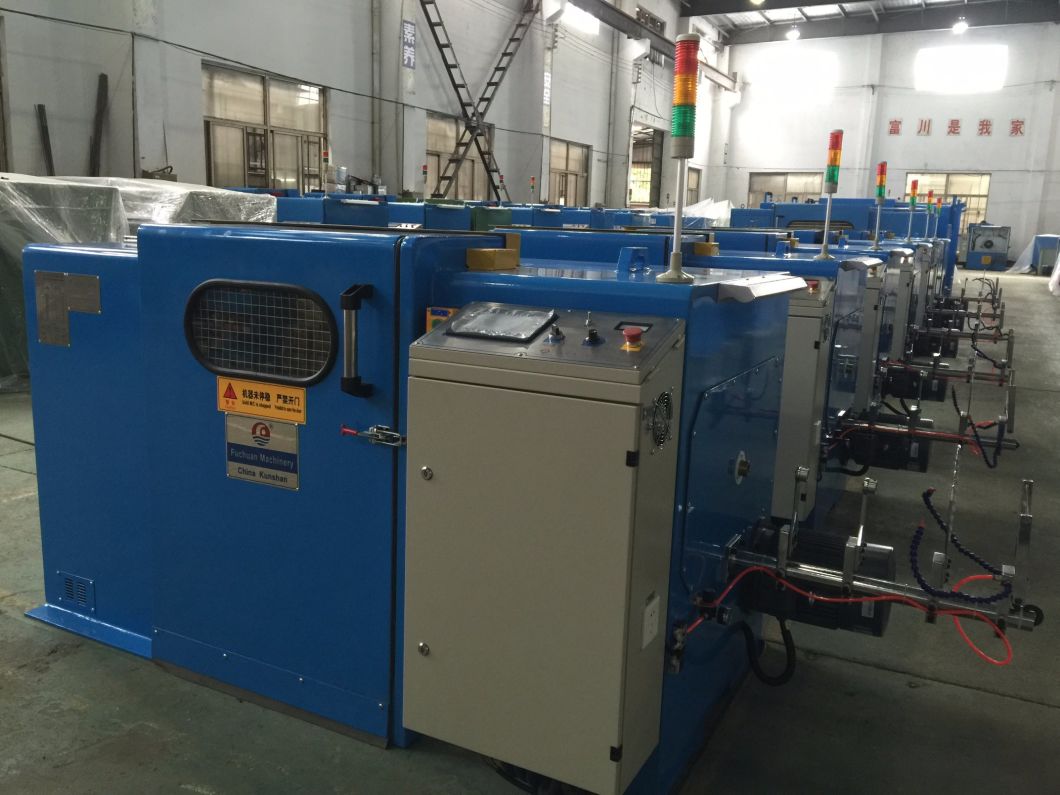

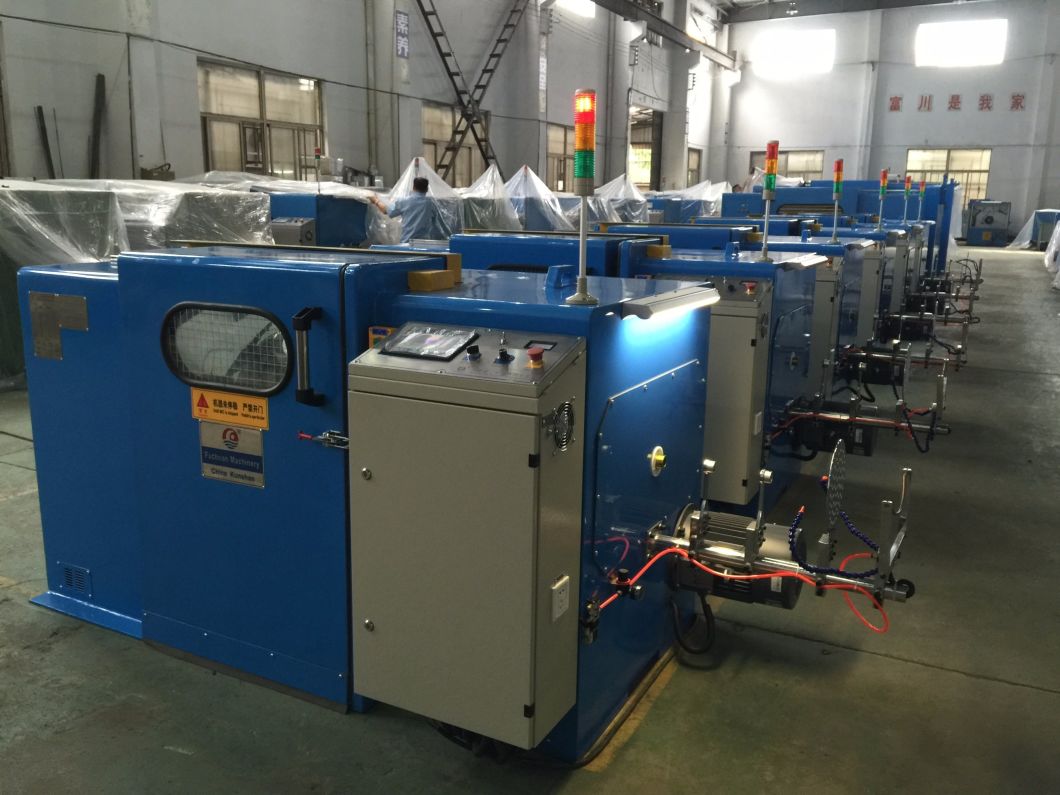

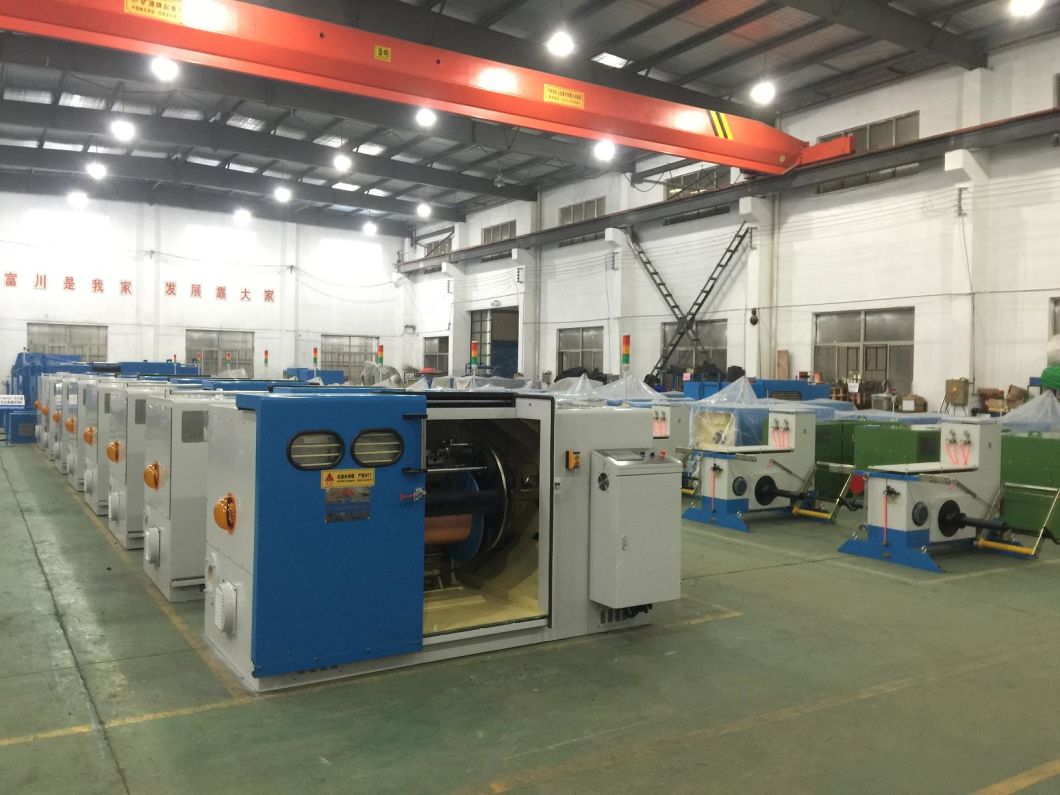

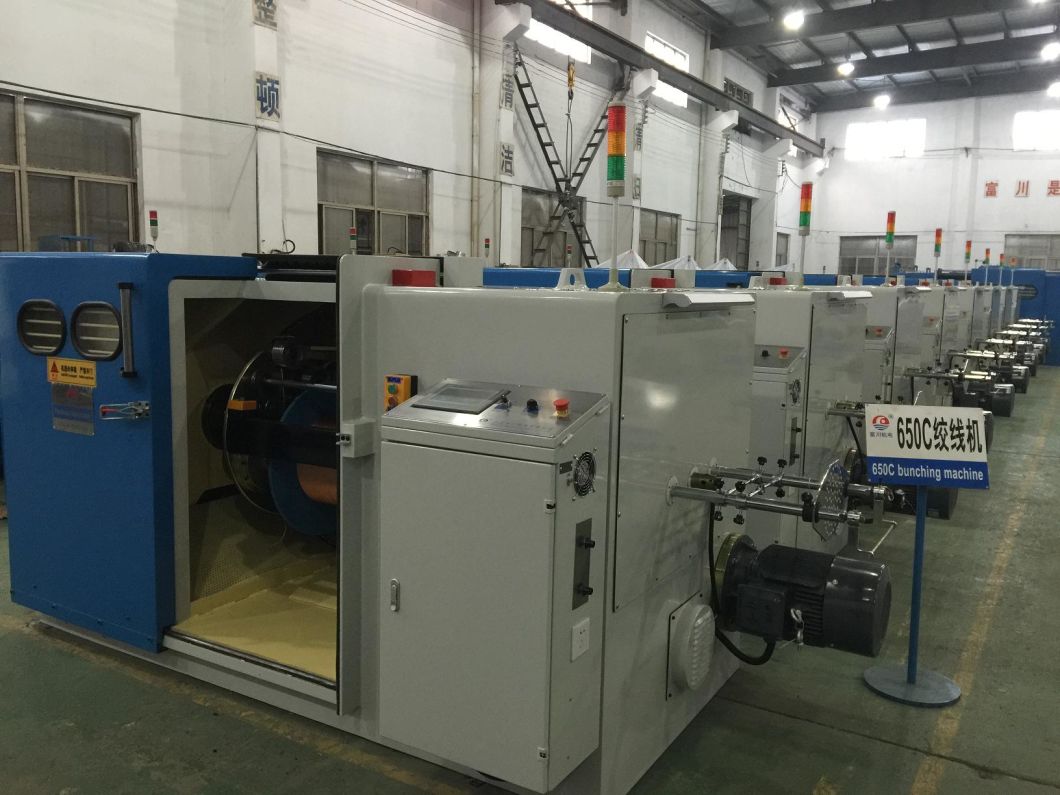

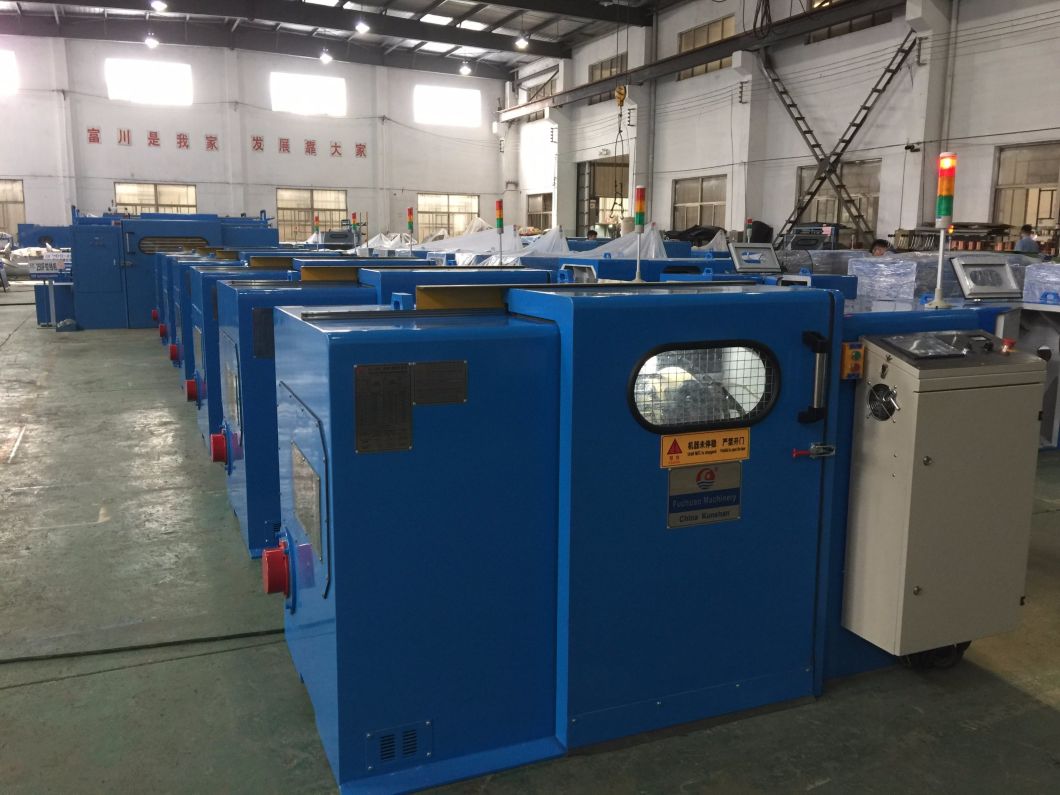

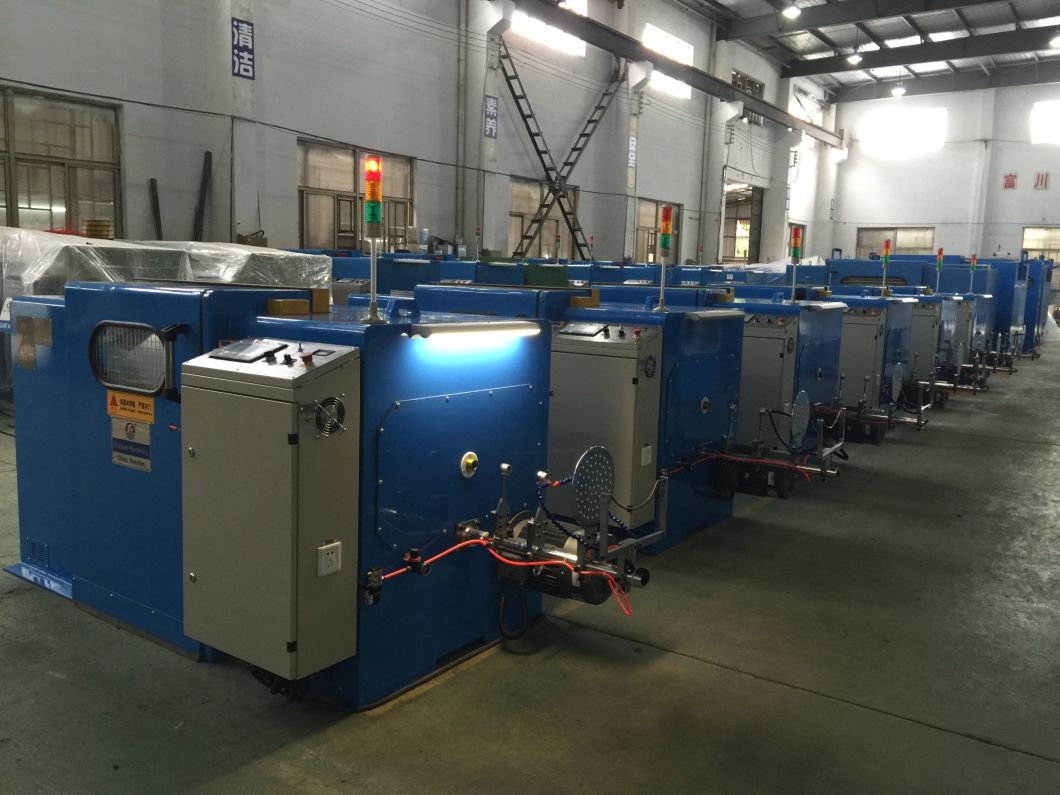

Electrical Cable Core Copper Wire 0.05-0.64mm Bunching Winding Making Bunchers Twister Double Twisting Machine
-
12months
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
Series for Model C normal wire high speed bunching machine and double twist bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.
Equipment model FC-500C FC-650C-1 FC-650C-2 FC-650C-3(PLC pitch) FC-800C Twisting usage Apply for automatic wire,electrical wire,power wire and so on(above seven pcs of bare copper wire,tinned wire,silver jacketed wires and enamelled wires) Single wire dia(mm) 0.08-0.45 0.15-0.52 0.12-0.52 0.12-0.52 0.2-1.04 Stranding section area 0.05-1.5 0.5-6 0.3-2.5 0.3-2.5 1-6 Pitch(mm) 4-34.5 11.6-100 11.6-67 20-68 13.8-100 Direction of lay Optional for right or left Take up size 400-500 500-630 630-800 Max rotating speed 3000(6000TPM) 2300(4600TPM) 2600(5200TPM) 1800(3600TPM) Main motor power 5.5KW 11KW 15KW Tension control method Touchscreen+PLC+magnetic powder clutch,ensure the constant tension from empty to full bobbin Hysteresis clutch+pressure sensor closed loop control,constant tension from empty to full Servo motor take up Touchscreen+PLC+magnetic powder clutch,ensure the constant tension from empty to full bobbin protection Internal and external wire cut off automatic brake(electromagnetic brake),automatic shut down when the meters reaches Traverse method Precious traverse or screw type polish wire traverse,winding pitch and width are adjustable Main bearing lubrication:automatic lubrication
