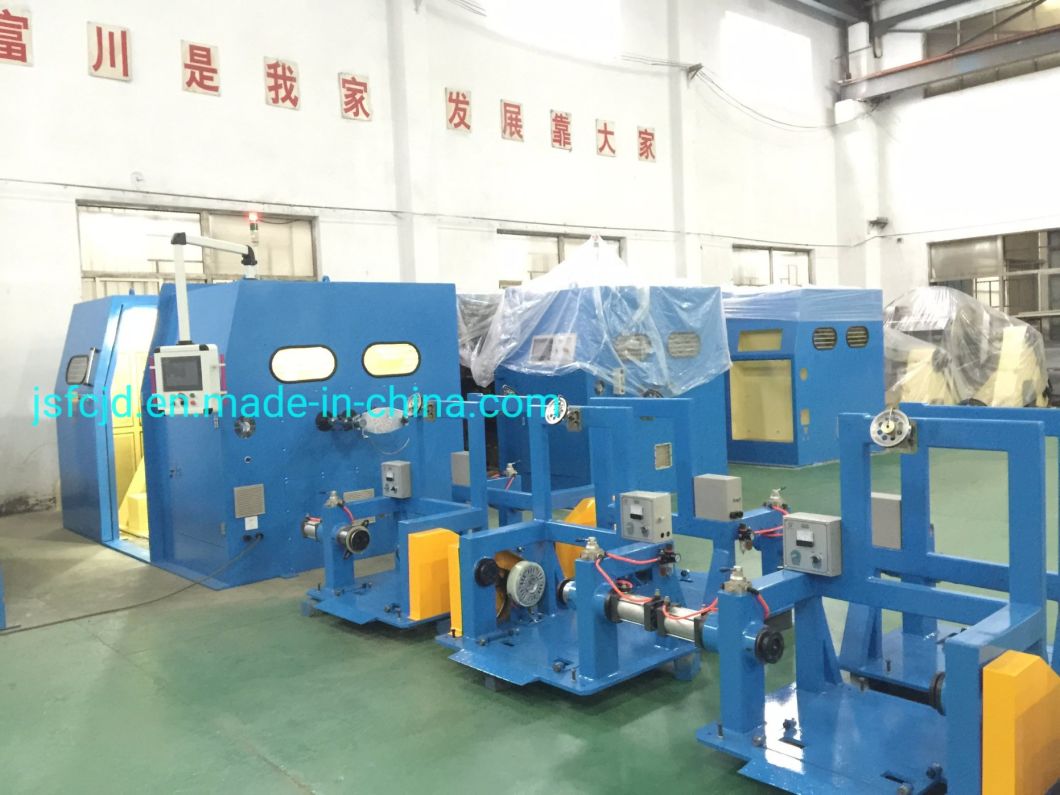

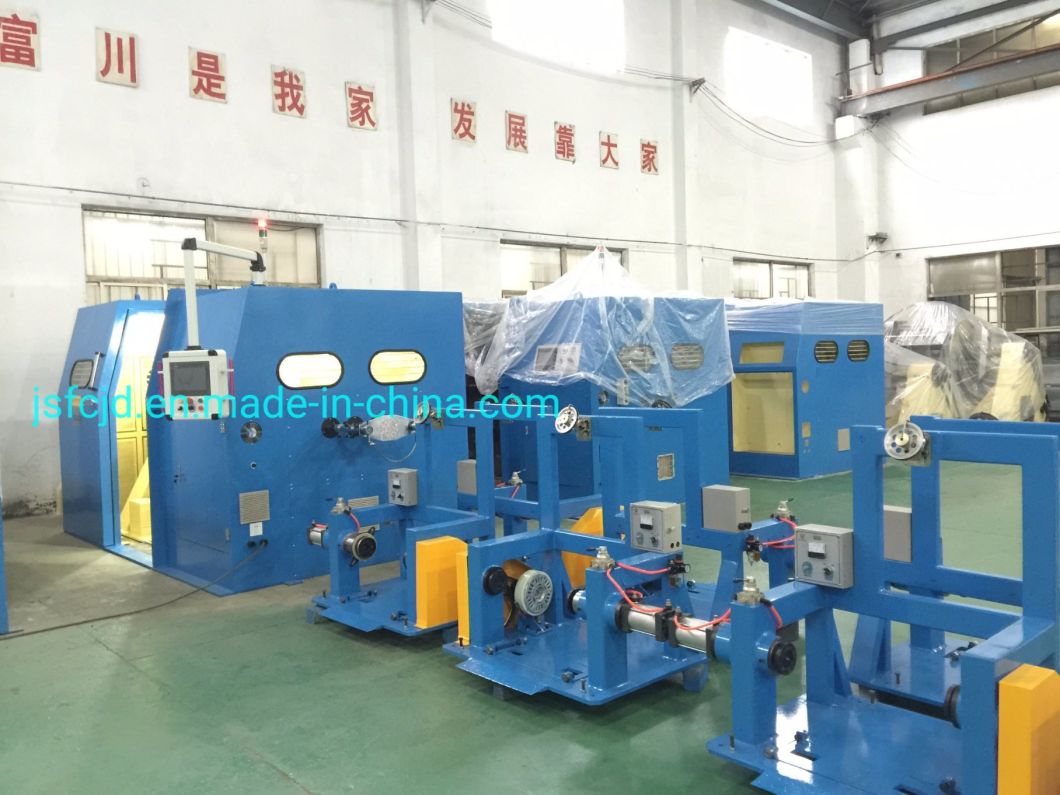

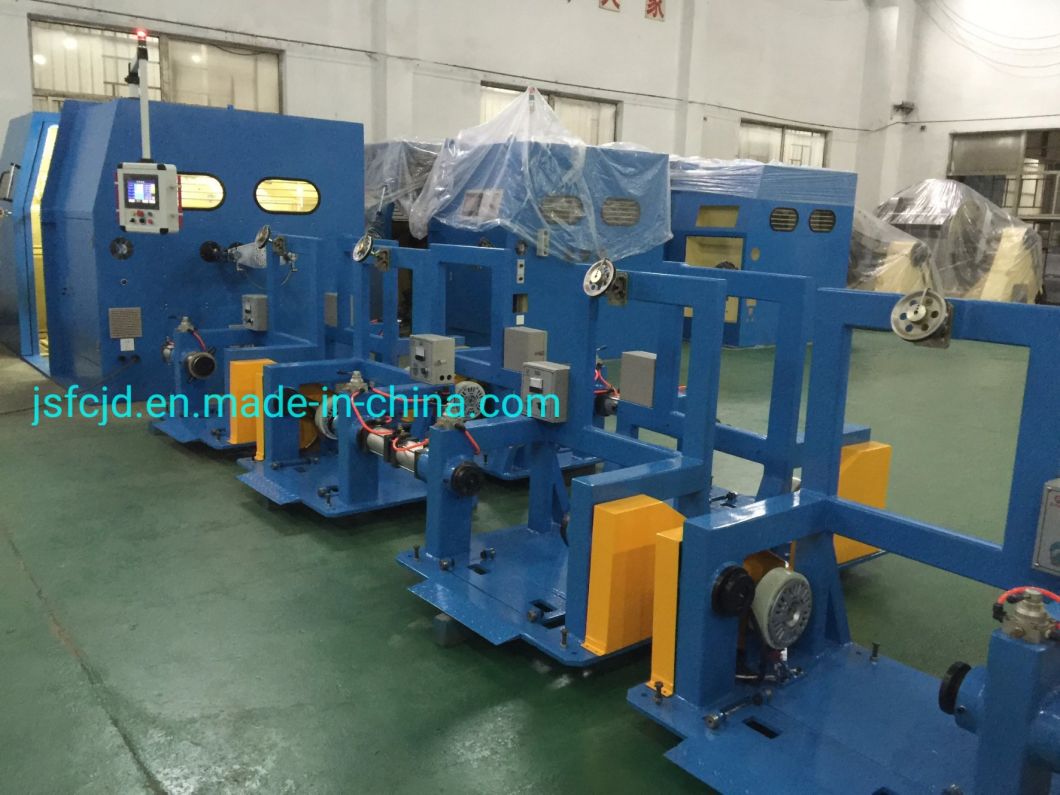

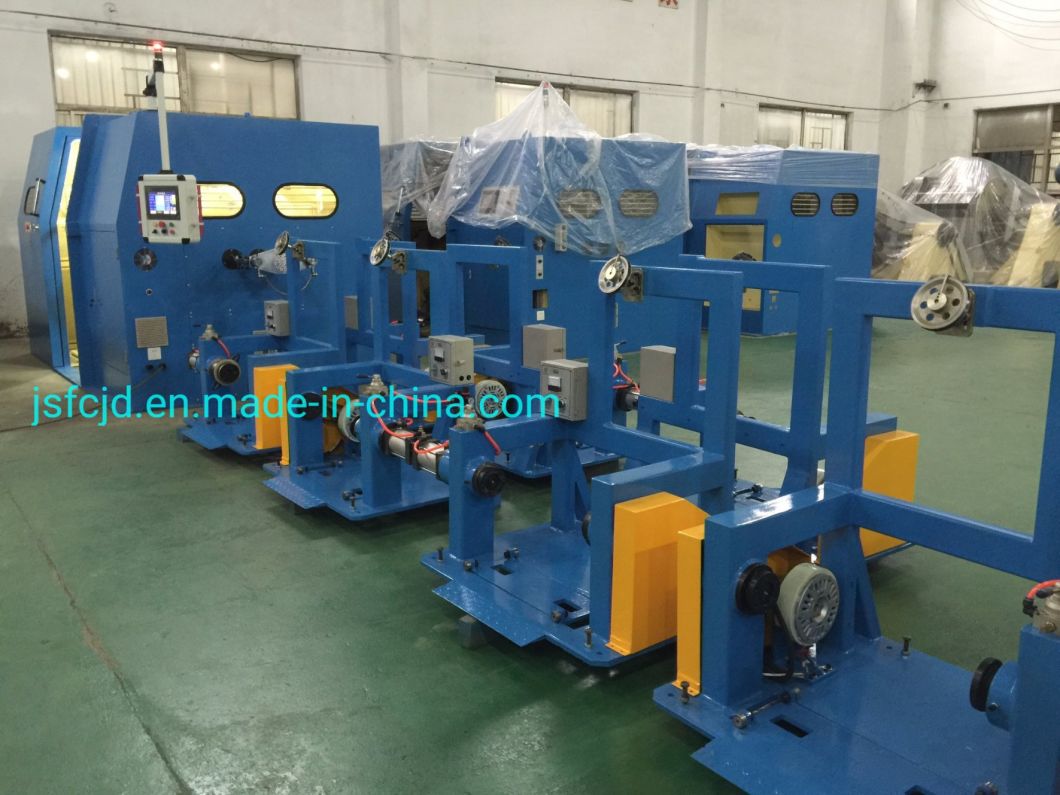

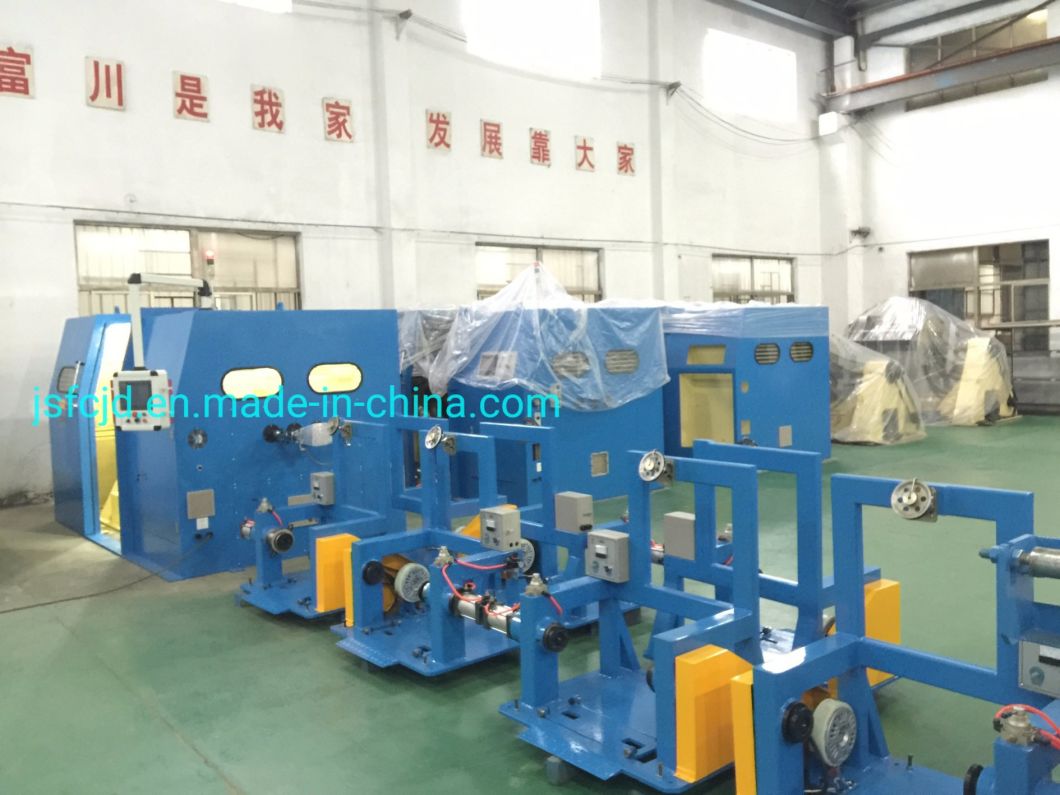

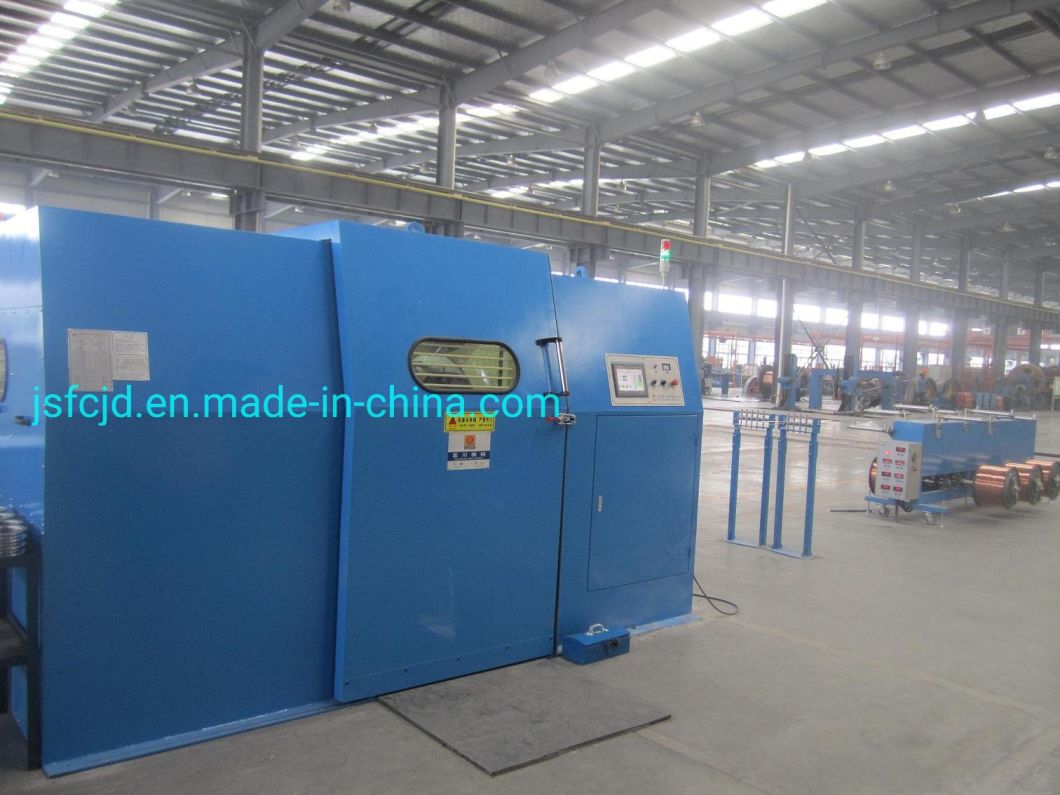

Electrical Cable Wire Twisting Bunching Buncher Extrusion Extruder Winding Making Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
>1,000,000 Shots
The technology of this machine is brought from Japan and put in production in Jiangsu.Series for Model-B big wire high speed bunching machineMerits: It is the latest developed machine. this machine replace the traditional Model 400 tube bunching machine With the high productivity( it is 4.5times than tube machine for the 1+6 conductors normal bunching ),low power, small floor place, low noise and other merits.
Model FC-1000B FC-1250B FC-1600B Usage It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires. Single Wire Dia(mm) Φ0.3~1.7 Φ0.5~2.14 Φ0.5~2.52 Stranding Section Area(mm²) 6.0~35.0 10.0~50.0 16.0~95.0 Core Wire Single Wire Dia(mm) Φ2.0~5.0 Φ3.0~8.0 Φ3.0~10 Core Wire Stranding Outer Dia(mm) Φ4.0~10.0 Φ6.0~16.0 Φ8.0~20.0 Pitch(mm) 35-200(12sections) 50-250(12sections) 80-350(12sections) Direction of Lay optional for right or left Take-up Bobbin(mm) Φ1000*Φ80*750 Φ1250*Φ80*950 Φ1600*Φ80*1180 Max Rotating Speed(rpm) 1000(2000twist) 800(1600twist) 600(1200twist) Main Motor Power 18.5KW 22KW 30KW
Inverter Power18.5KW 22KW 30KW Tension Control Method Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin. Magnetic Powder Clutch 20kgf 20kgf 40kgf Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. Brake Mode Electromagnetic Brake Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. Operation Mode Touch Screen Operation Dimension(mm) 4000L*2200W*2100H 4500L*2600W*2500H 5000L*3000W*3000H The technology of this machine is brought from Japan and put in production in Jiangsu.Series for Model-B big wire high speed bunching machineMerits: It is the latest developed machine. this machine replace the traditional Model 400 tube bunching machine With the high productivity( it is 4.5times than tube machine for the 1+6 conductors normal bunching ),low power, small floor place, low noise and other merits.
Model FC-1000B FC-1250B FC-1600B Usage It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires. Single Wire Dia(mm) Φ0.3~1.7 Φ0.5~2.14 Φ0.5~2.52 Stranding Section Area(mm²) 6.0~35.0 10.0~50.0 16.0~95.0 Core Wire Single Wire Dia(mm) Φ2.0~5.0 Φ3.0~8.0 Φ3.0~10 Core Wire Stranding Outer Dia(mm) Φ4.0~10.0 Φ6.0~16.0 Φ8.0~20.0 Pitch(mm) 35-200(12sections) 50-250(12sections) 80-350(12sections) Direction of Lay optional for right or left Take-up Bobbin(mm) Φ1000*Φ80*750 Φ1250*Φ80*950 Φ1600*Φ80*1180 Max Rotating Speed(rpm) 1000(2000twist) 800(1600twist) 600(1200twist) Main Motor Power 18.5KW 22KW 30KW
Inverter Power18.5KW 22KW 30KW Tension Control Method Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin. Magnetic Powder Clutch 20kgf 20kgf 40kgf Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. Brake Mode Electromagnetic Brake Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. Operation Mode Touch Screen Operation Dimension(mm) 4000L*2200W*2100H 4500L*2600W*2500H 5000L*3000W*3000H
