Electrical Cable Wire Winding Twisting Bunching Extrusion Twisting Drawing Cable Making Extruder Price of Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots

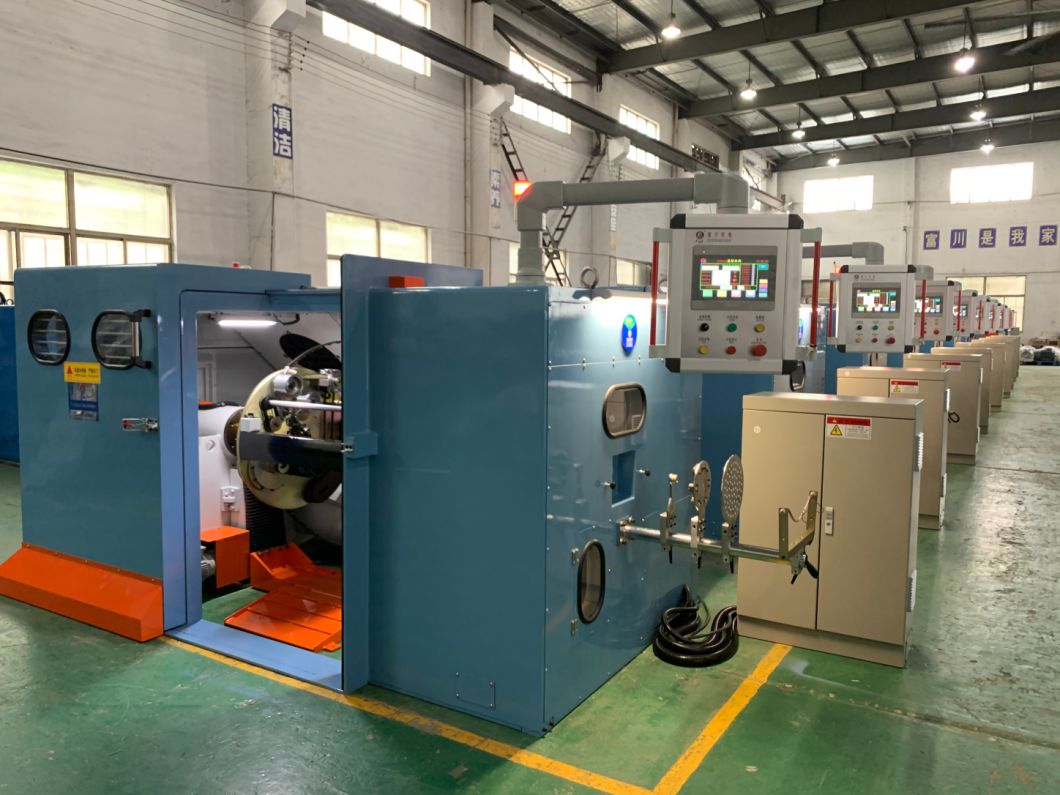

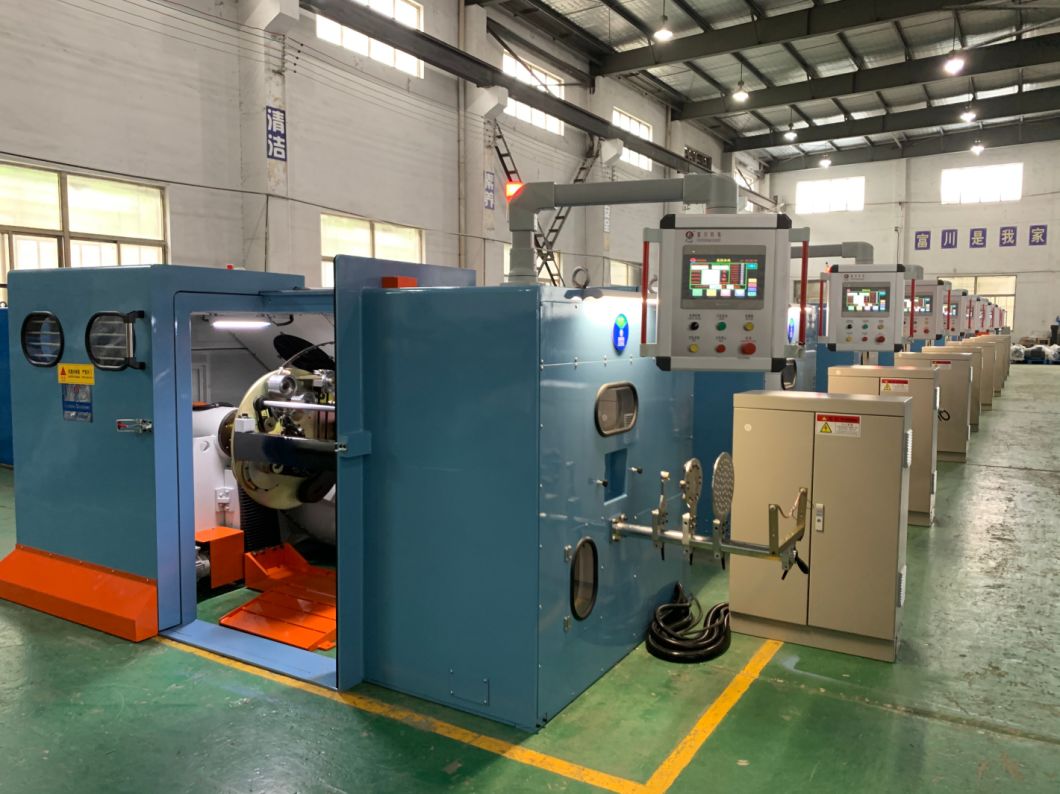

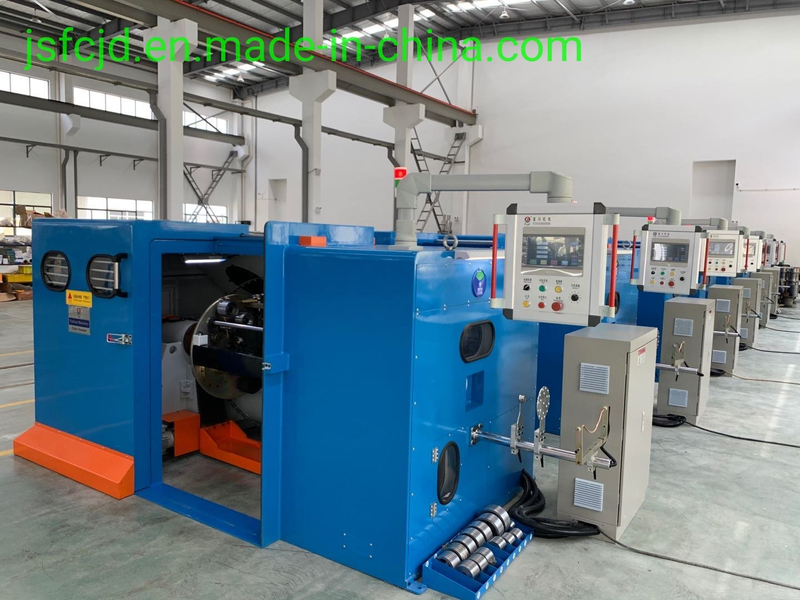

Main performance parameters of FC-650C-2 automatic high speed bunching machine (replace of the capstan wheel to change the lay length).- Usage: It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may twist instead of bunching.
3.Outer diameter of wire: φ0.70~φ2.05mm;
4.Cross section area: φ0.30~φ2.5mm2
5.Size of take up spool: φ630mm×475mm×φ125mm(according to client's drawings to make).
6. Maximum rotating speed: 2600RPM
7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 34 section 11.6~67mm (enclose list of standard lay length).
9. Main motor:11KW AC motor +frequency converter
10. Weight of copper load: about 400kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.

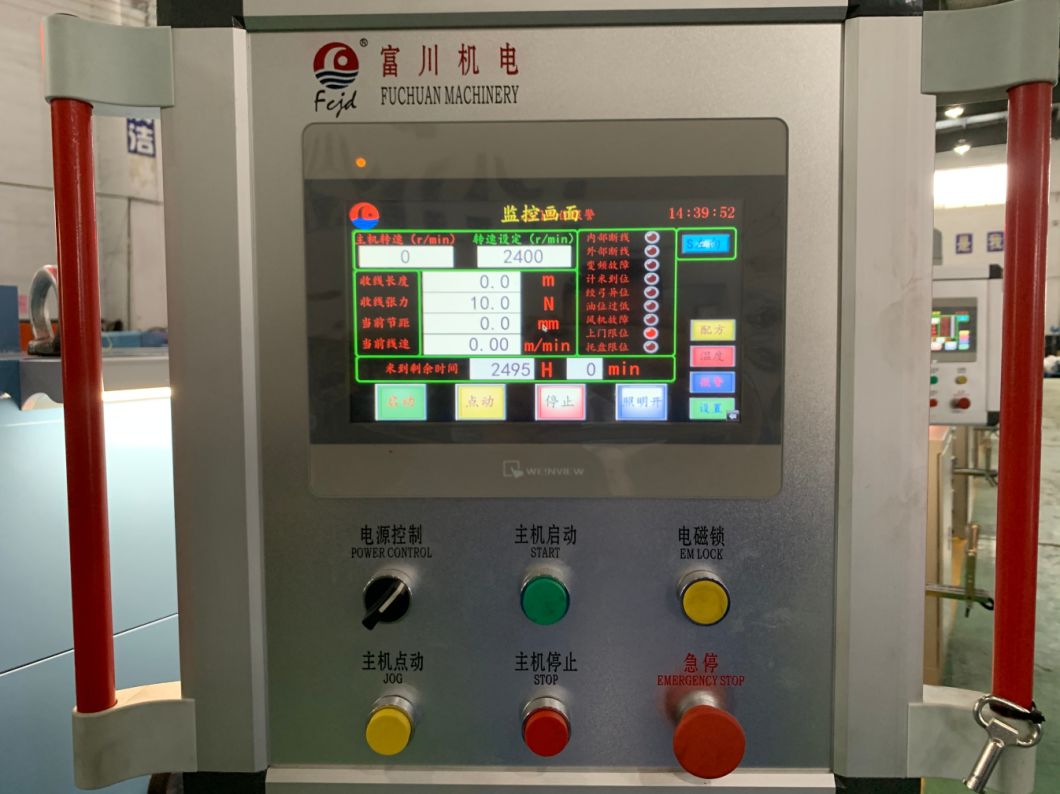

13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted manual pump hydraulic landing.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: about 80dB
19.Dimension: (length×breadth×height): 3650×2000×2200mm
20. Weight:5500Kg
21. Coating:Ral5015sky blue (may according to customer's requirements).
22. Package: simple waterproof packing
23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make).
24. Sealing of machinery door: seal of plastic.
25. Spindle housings sealing: mechanical block oil ring
26. Accessories: details for list
