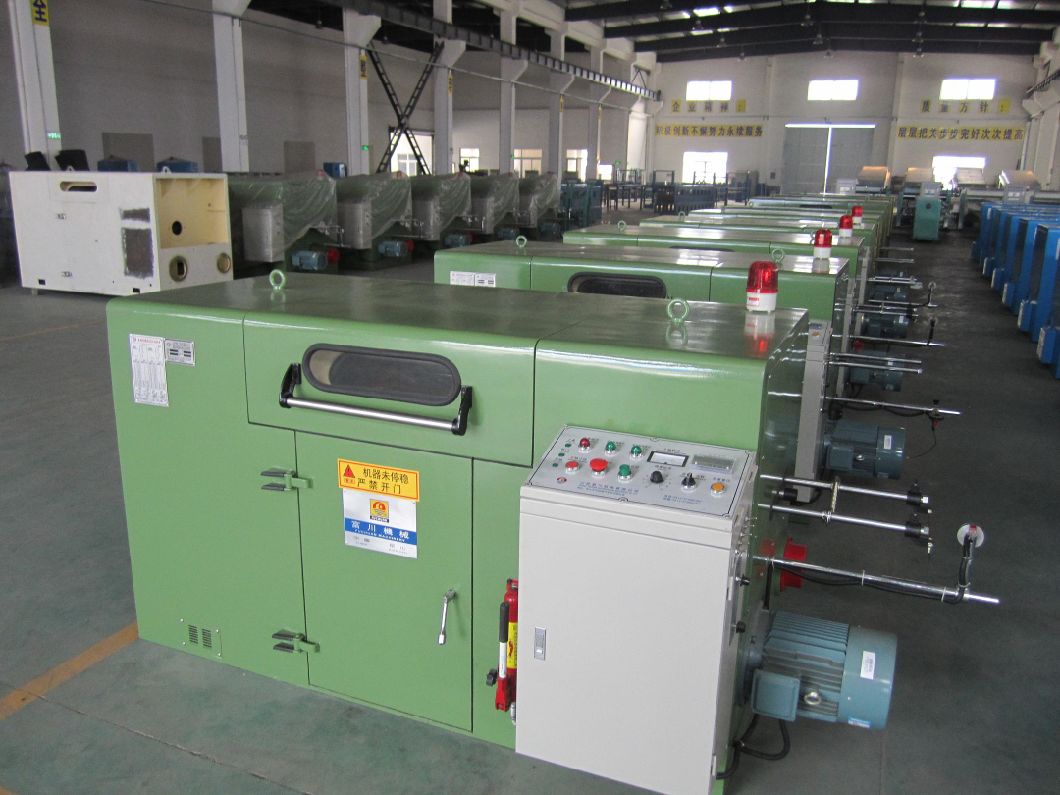

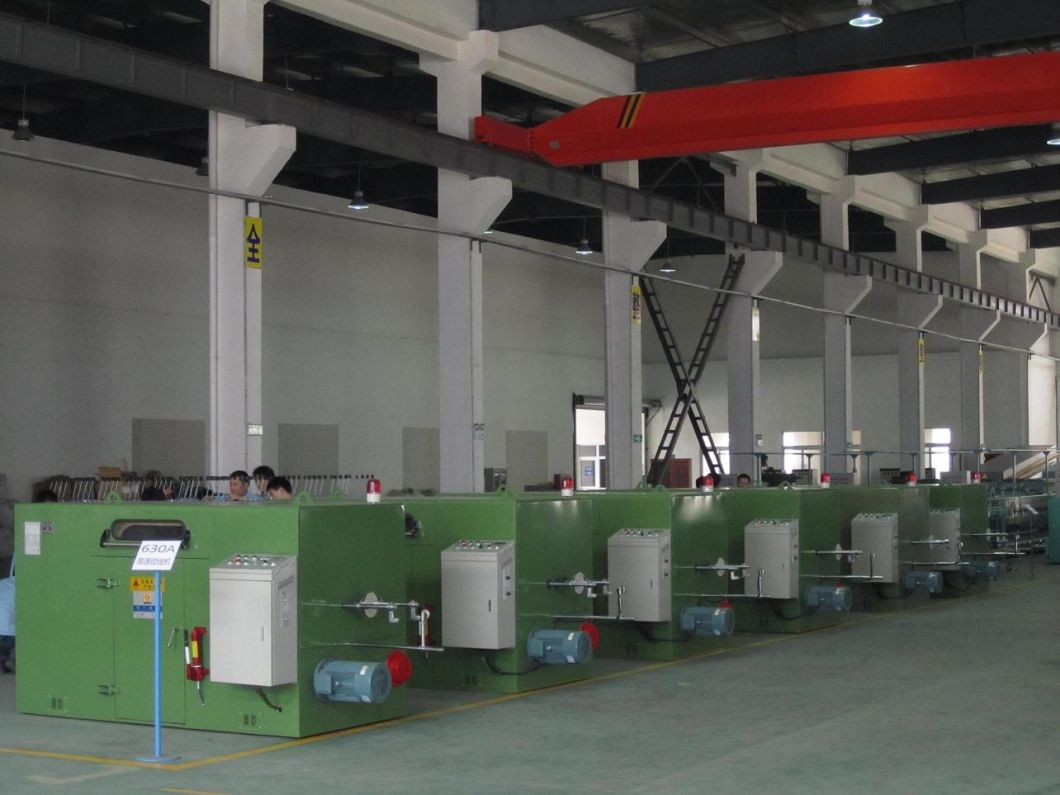

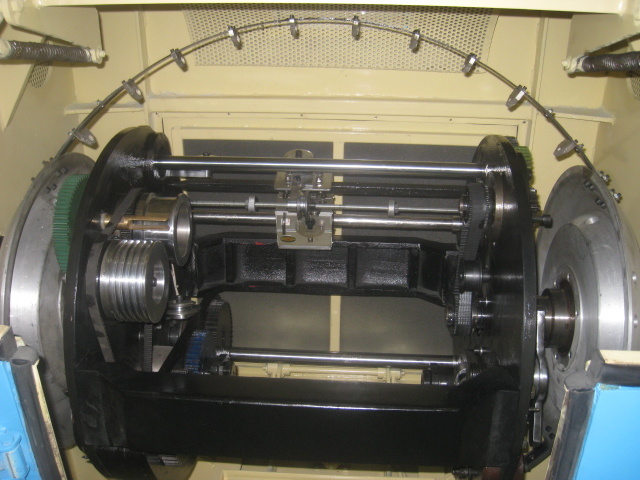

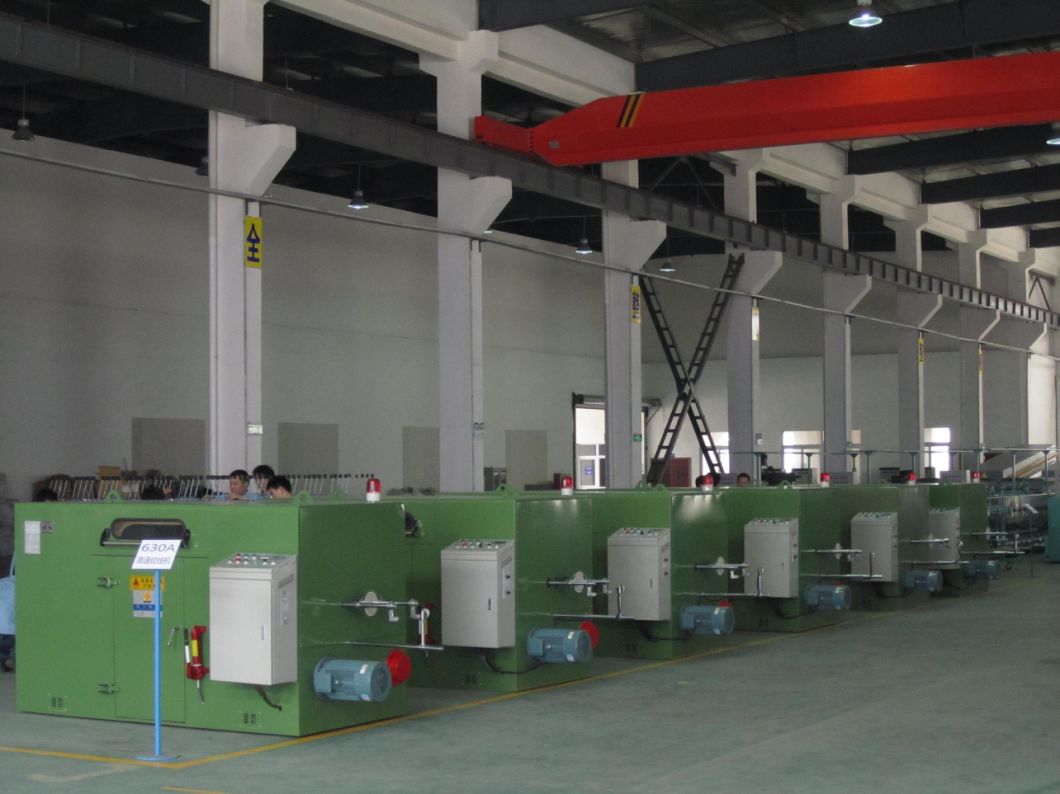

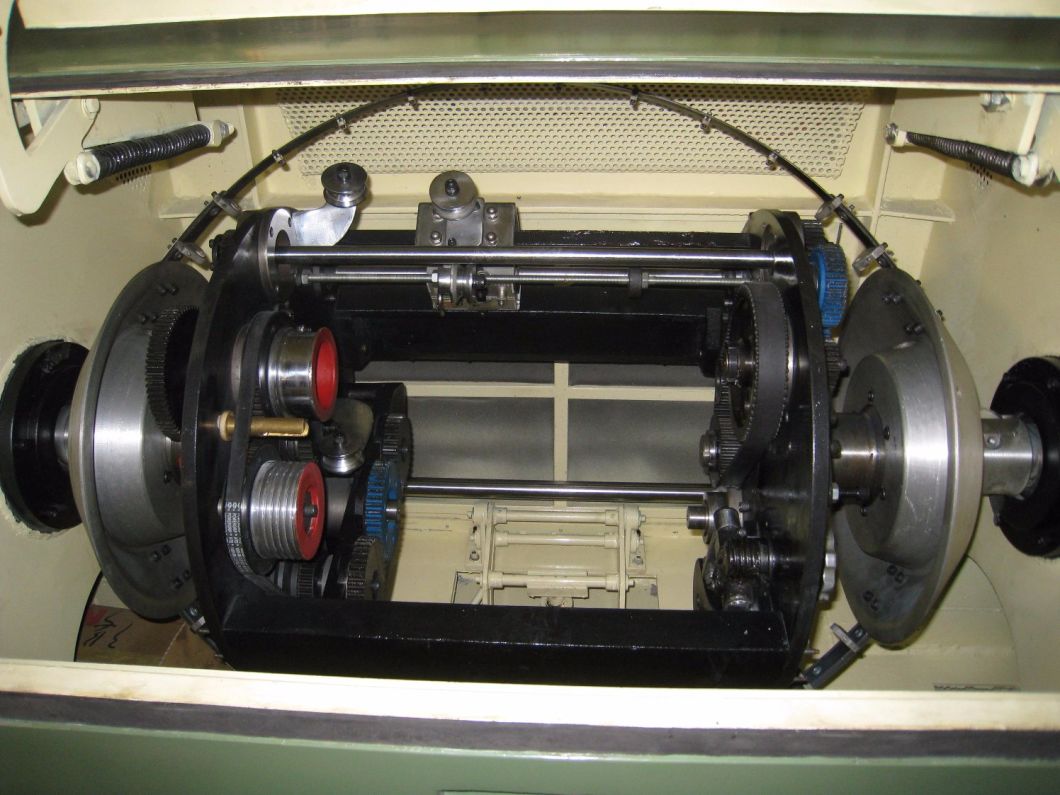

Electrical Copper Wire0.04-2.52mm Tinned Wire Double Twisting Buncher Bunching Twister Stranding Machine
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots
Copper wire,core wire high speed twisting machine
1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.
2. Usage:
It is applied to the twisting of above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.
3. Tech. Parameters:
For more details, please feel free to contact me.The technology of this machine is brought from Japan and put in production in Jiangsu. Series for Model-A big wire high speed bunching machine Merits: It is the latest developed machine. this machine replace the traditional Model 400 tube bunching machine With the high productivity( it is 4.5times than tube machine for the 1+6 conductors normal bunching ),low power, small floor place, low noise and other merits. Model FC-300A FC-500A FC-630A FC-800A Usage It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires. Single Wire Dia(mm) Φ0.08~0.28 Φ0.10~0.64 Φ0.15~1.04 Φ0.2~1.7 Stranding Section Area(mm²) 0.035-0.45 0.05-2.5 0.5-6 1.0-16 Core Wire Single Wire Dia(mm) Φ0.25~Φ0.8 Φ0.75~Φ1.5 Φ1.0~Φ3.0 Φ1.0~Φ4.0 Core Wire Stranding Outer Dia(mm) Φ0.5~Φ1.6 Φ1.5~Φ3.0 Φ2.0~Φ6.0 Φ2.0~Φ8.0 Pitch(mm) 4.5-17.5(10section) 5.82-53.73(34section) 11.48-100(36section) 19.8-200(30section) Direction of Lay optional for right or left Take-up Bobbin(mm) Φ300*Φ30*160 Φ400*Φ56*300/Φ500*Φ70*320 Φ630*Φ56*475/Φ630*Φ125*475 Φ800*Φ80*600 Max Rotating Speed(rpm) 3000(6000twist) 2200(4400twist) 1600(3200twist) 1200(2400twist) Main Motor Power 3.7KW 5.5KW 7.5KW 11KW Inverter Power 3.7KW 5.5KW 7.5KW 11KW Tension Control Method Mechanism Friction Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. Brake Mode Electromagnetic Brake Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. Operation Mode push-button control Dimension(mm) 2300L*1000W*1150H 2800L*1280W*1300H 3280L*1600W*1600H 3600L*1850W*1800H
