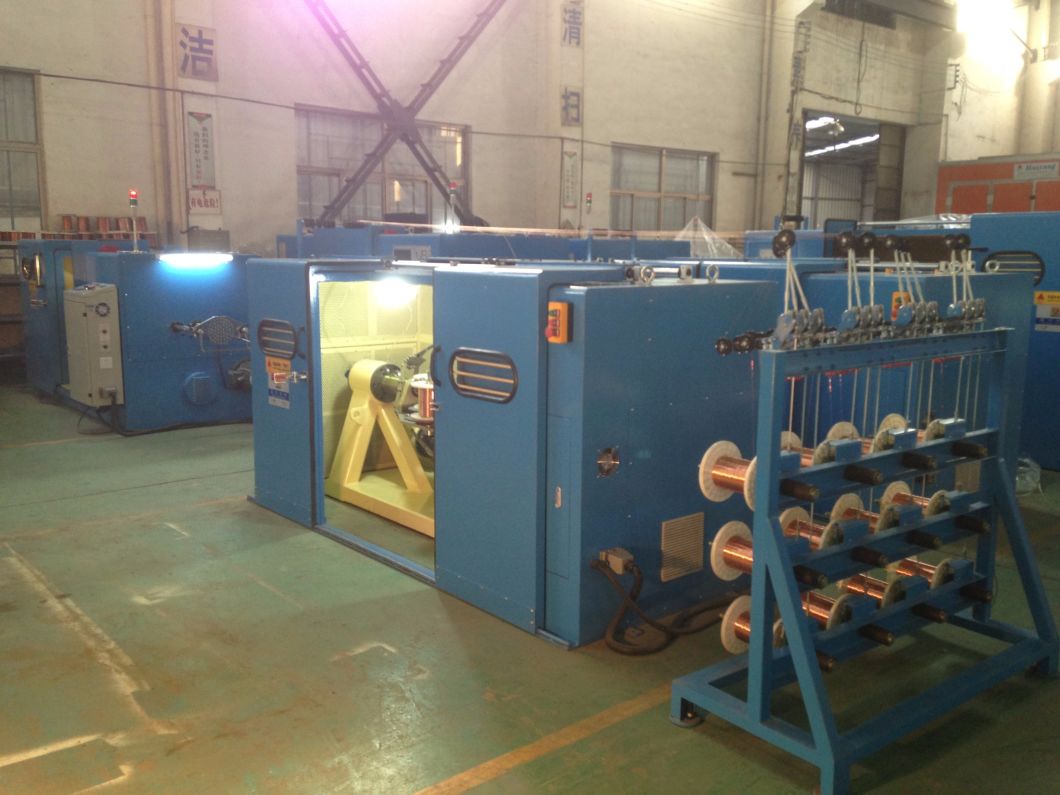

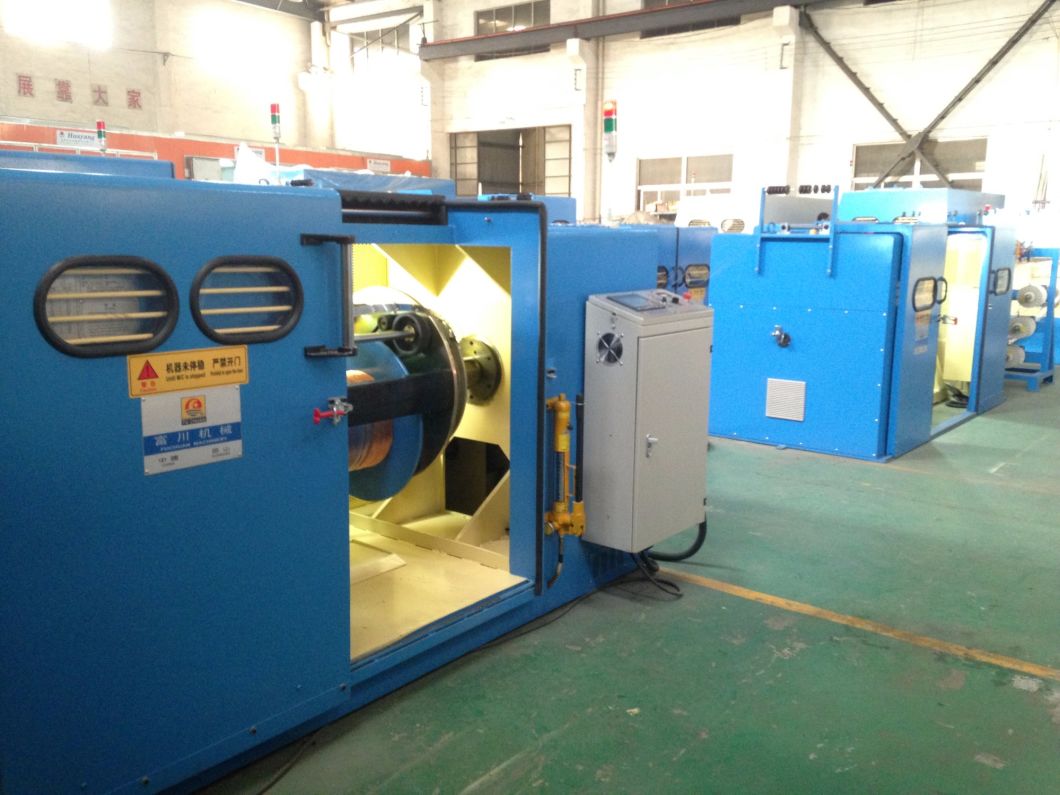

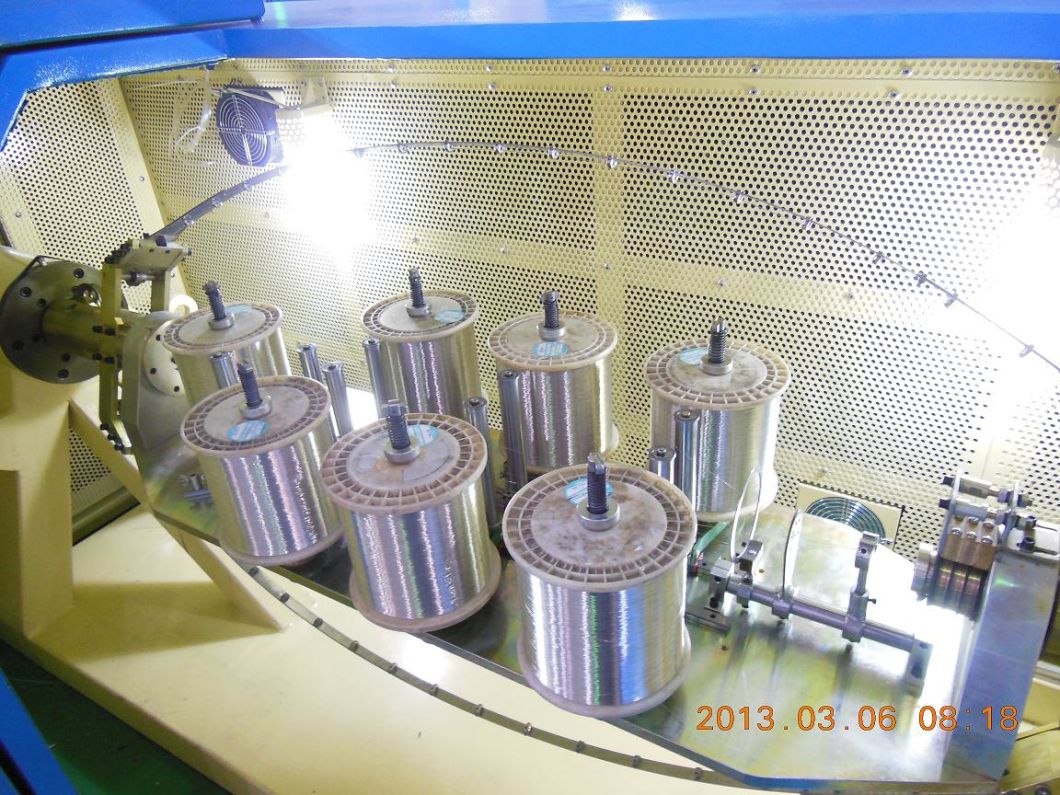

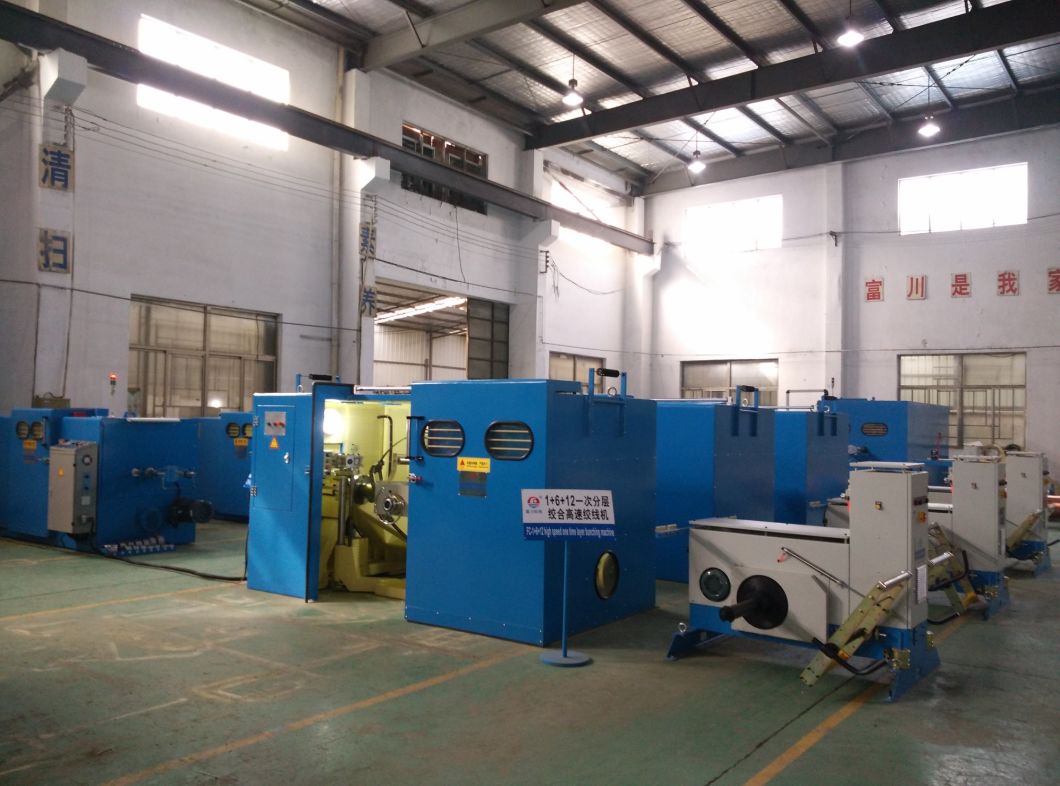

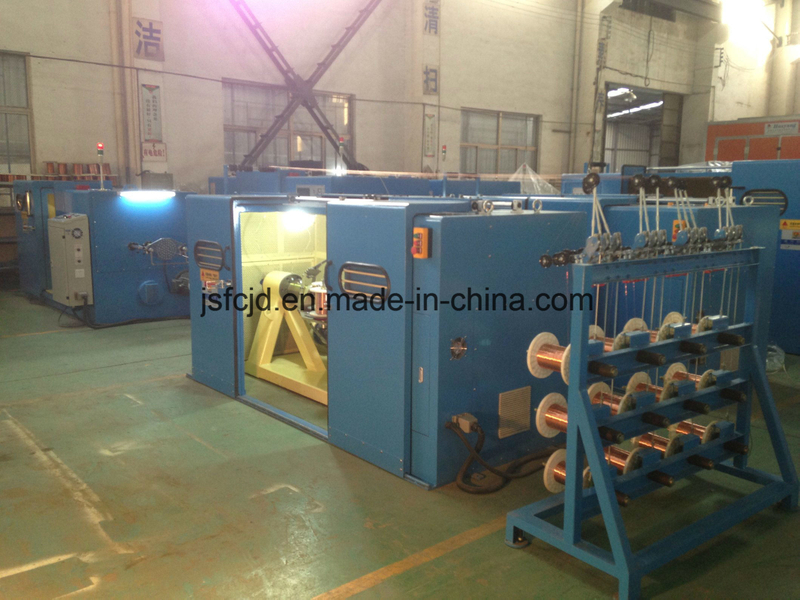

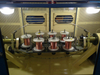

FC-1+6+12copper Wire 0.16-0.32mm Unilay Bunching Buncher Machine Double Twisting Cable Wire Making Machine
-
12months
-
12months
-
It Is Appliable to Bunching 19PCS Copper Wire in 1
-
0.16mm-0.64mm
-
0.38-6.0mm2
-
11.6-100mm(34zones)
It is our newest developed product, mainly for the BVR conductor wire and high temperature conductor wire layer stranding, instead of the 200 type tube bunching machine.
Series for 1+6+12 High Speed Bunching Machine Merits: It is the latest developed machine. This machine replace the Model 200 tube bunching machine with the high productivity( it is 4.5times than tube machine for the 1+6+12 conductors normal bunching ),low power, small floor place, low noise and other merits.
Model 1+6+12(200bobbin) 1+6+12(630bobbin) Usage It is applied to bunch 19pcs BVR copper wire normally Single Wire Dia(mm) Φ0.16~Φ0.64 Stranding Section Area(mm²) 0.38~6.0 Pitch(mm) 11.6-100(34pcs pitch) Direction of Lay optional for right or left Pay-off Bobbin 8inch \9inch ABS Bobbin PND 630 Multiple Drawing Bobbin Pay-off Tension Mechanical Friction Magnetic Tension Take-up Bobbin(mm) Outer Diameter*Bore*Outer Width Φ630*Φ127*475/Φ630*Φ56*475 Φ630*Φ127*475/Φ630*Φ56*475 Max Rotating Speed(rpm) 2000(4000twist) 2000(4000twist) Pay off power 5.5KW 7.5KW Take-up Power 7.5KW 7.5KW Tension Control Method Touch screen+PLC+magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin. Magnetic Powder Clutch 5kgf 5kgf Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. Brake Mode Electromagnetic Brake Traversing Method Rolling ring drive units, winding pitch and breadth are adjustable. Operation Mode Touch Screen Operation Dimension(mm) 10000L*2500W*1650H 10000L*2500W*1650H
