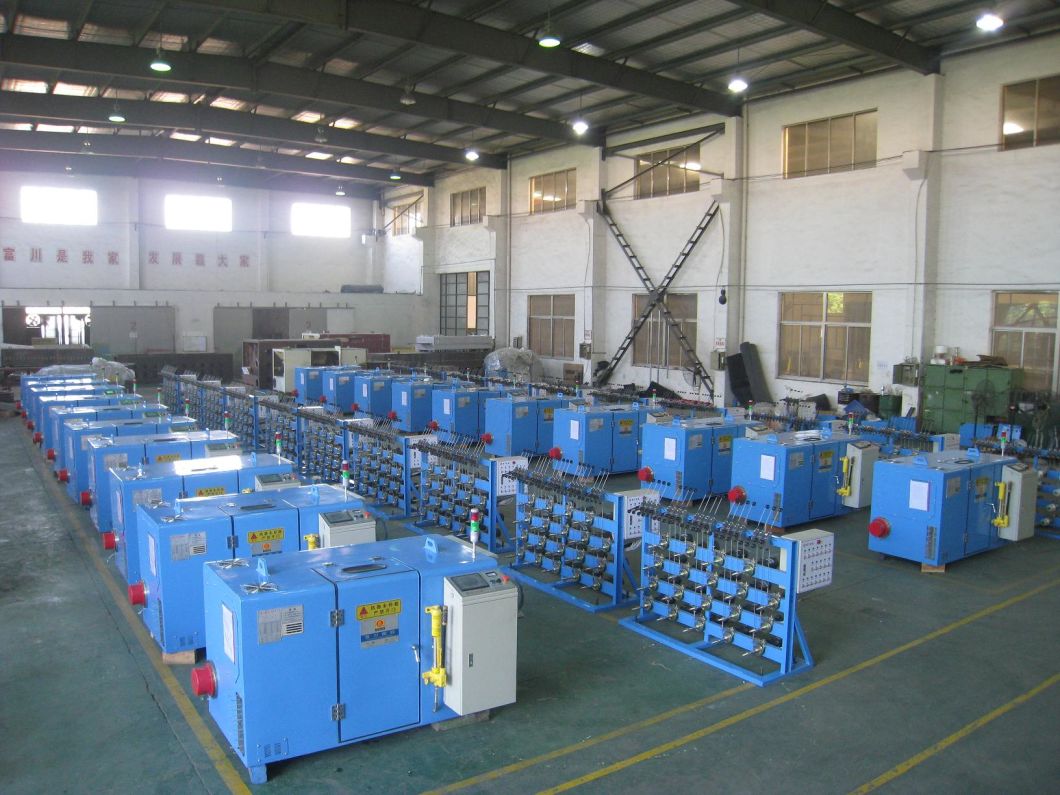

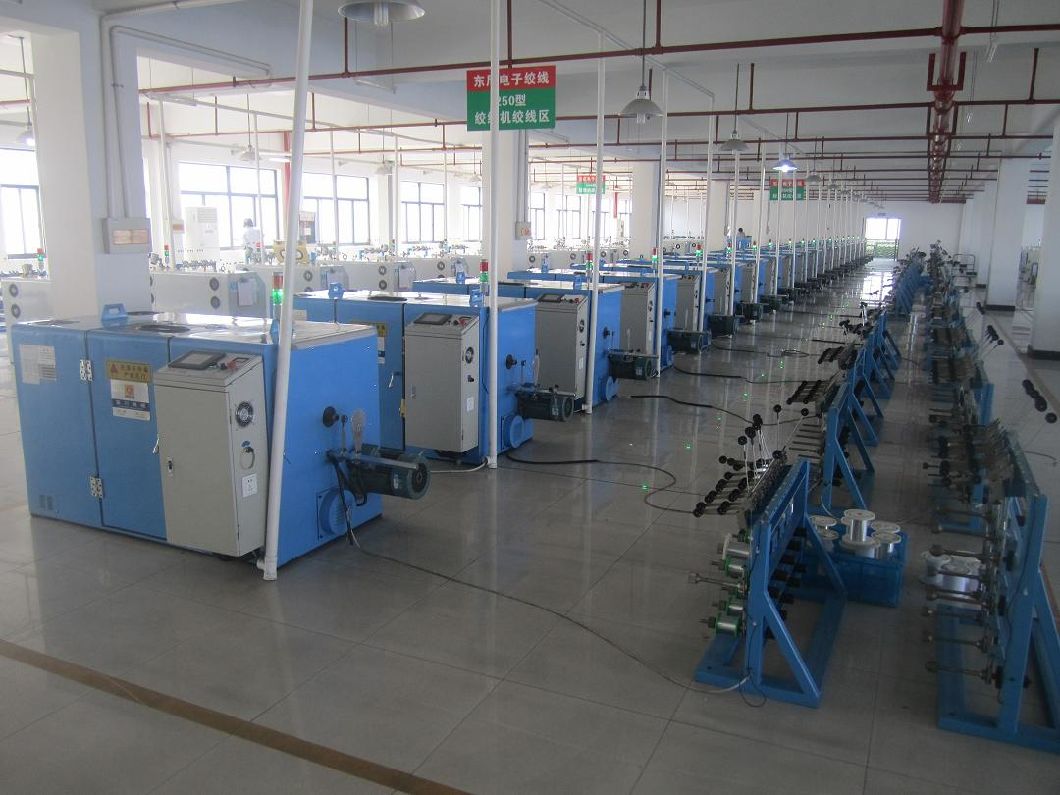

Fine Wire and Cable Winding Twisting Extrusion Bunching Drawing Stranding Extrusion Machine
-
12months
-
Electric
-
New
-
ISO, CE
-
12 Months
-
Automatic

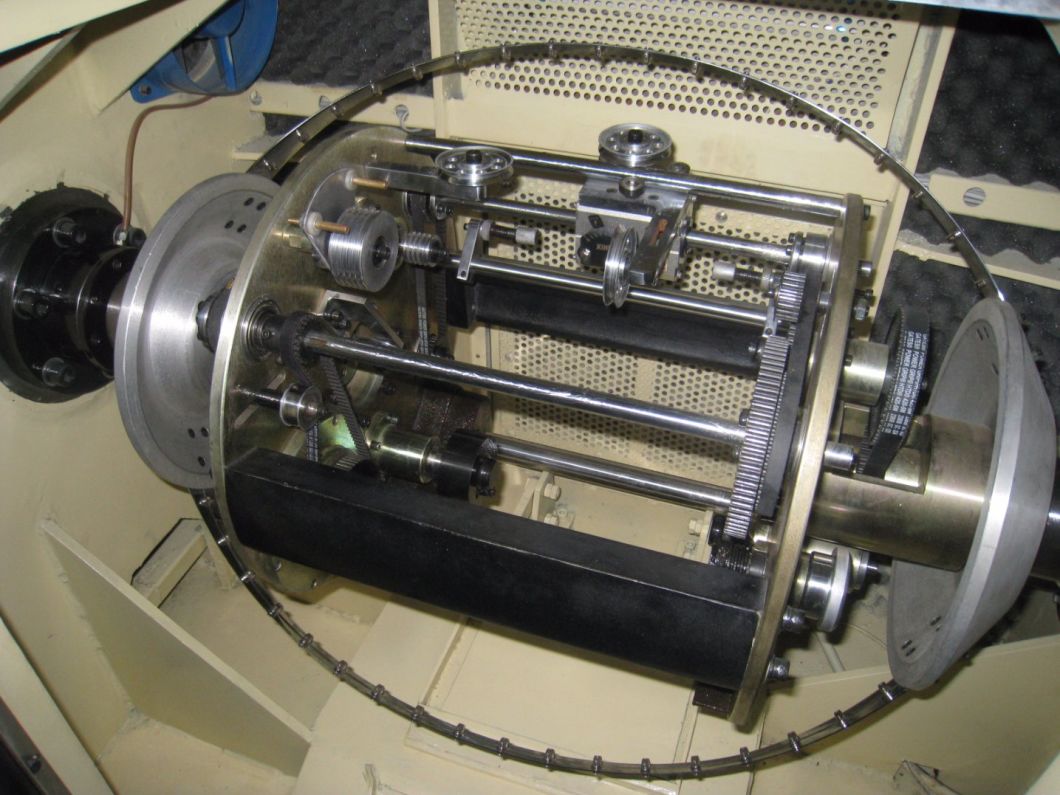

Main performance parameters of FC-300B high speed bunching machine (replace of the capstan wheel to change the lay length).- Usage:It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may bunching instead of twisting.
3.Outer diameter of wire:φ0.15~φ0.90mm
4.Cross section area:φ0.0137~φ0.45mm2
5.Size of take up spool:φ300mm×length160mm×inner coreφ30mm(according to client's drawings to make).
6. Maximum rotating speed:3300RPM,normal working speed3000RPM
7.Type of traverse:φ15mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length:24 section 1.60~21.60mm (enclose list of standard lay length).
9. Main motor: 3.7KW AC motor +frequency converter
10. Weight of copper load: about 40kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension ,constant tension.
14. Drive bearing: it is adopted imported Japan bearing.
15. Synchronization strap: it is adopted imported American product.
16. Spool from top to bottom: it is adopted manual pump hydraulic landing.
17. Way of spindle lubrication: grease enclosed lubrication.
18. Index of noise: about 80dB
19.Dimension: (length×breadth×height): 2300×1100×1300mm
20. Weight: 1600Kg
21. Coating: Ral5015sky blue (may according to customer's requirements).
22. Package: simple waterproof packing
23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make).
24. Sealing of machinery door: seal of plastic.
25. Spindle housings sealing: mechanical block oil ring
Rita zhou
Senior sales
Kunshan fuchuan machinery
No18Leigongjing road,huaqiao development destrict.
Kunshan city,Jiangsu province China
1. Merits:
With high rotation speed, with the main shaft counts the meters, the same machine twist the types of the same line, and the tolerance is only 0.0001%. With constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up FC-100 active back-twist pay-off machine. And meet requirements of customer to twist wire of small crossection area. The machine is driven by synchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.
2. Apllication:
It is applied to the bunching of aerospace, medical equipment, cellphone and ultra conductor(above 7 PCS of bare copper wires, tinned wires, silver jacketed wires and enamelled wires).
3. Tech. Parameter:Equipment model FC-200B FC-250B FC-300B FC-400B Twisting usage Apply for the twisting of above seven pcs of aerospace,medical instrument,cellphone,notebook PC and ultra fine conductor,alloy wire,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires. Single wire diaφ(mm) 0.016-0.08 0.03-0.18 0.05-0.28 0.05-0.32 Stranding section area 0.0014-0.035 0.0049-0.3 0.0137-0.45 0.0137-1.0 Pitch(mm) 0.8-4.0 0.8-10.8 1.6-21.6 3.1-33.3 Direction of lay Optional for right or left Take up bobbin(mm) Dia200 Dia250 Dia300-250 Dia400 Max rotating speed 5000rpm(10000TPM) 4000rpm(8000TPM) 3500rpm(7000TPM) 3500rpm(7000TPM) Main motor power 2.2kw 3.7kw 3.7kw 3.7kw Inverter power 2.2kw 3.7kw 3.7kw 3.7kw Tension control method Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin Magnetic powder clutch 0.05kgf 0.3kgf 0.6kgf 0.6kgf Protection 1.wire inside and outside is broken,automatically brake/stop
2.The preset length is arrivedBrake mode Electromagnetic brake Traversing method Rolling wire with ring drive units,winding pitch and breadth are adjustable Operation mode Touchscreen operation Dimension(mm) 2000L*960W*1100H 2300L*1100W*1330H 2300L*1100W*1330H 2850L*1150W*1350H
For more details, please contact me.Main performance parameters of FC-300B high speed bunching machine (replace of the capstan wheel to change the lay length).- Usage:It is applied to the stranding of bare twisted wire, tinned, copper covered aluminum, lacquer wire and alloy wire. 1+6 may bunching instead of twisting.
