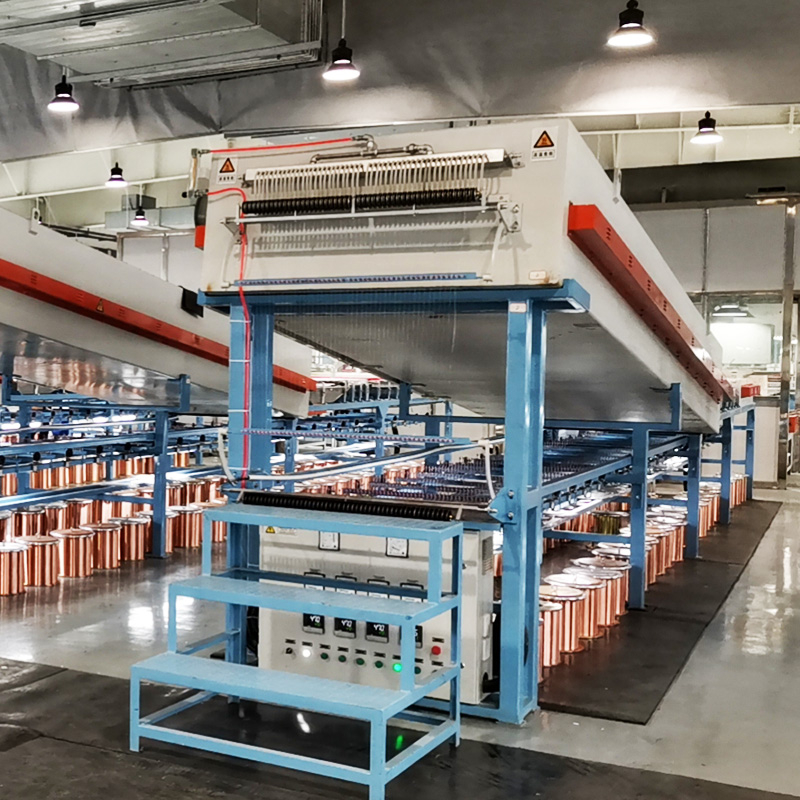

High Speed Annealing Tinning Machine

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • FC-T42

Equipment model

FC-T32

FC-T42

FC-T48

FC-T64

Machine usage

Apply for ultra-fine round copper wire and alloy wire annealing and tinning

Inlet wire dia(mm)

0.08-0.32/0.15-0.64mm

0.08-0.32

0.08-0.25

Max nos of inlet wire

32

42

48

64

Linear speed

Max:300m/min

Pay off type

Brush pay off

Pay off bobbin type

DIN300

Annealing furnace length

5M/6M

Annealing type

Tube type annealing

Annealing protection type

Water seal protection+nitrogen or vapor protection

Tinned type

Hot dip

Capstan control type

Motor +driver

Equipment total power

83

92

98

87

Take up control

Voltage adjusting controls torque motor take up

Take up bobbin size

5inch,8inch/ 5inch,8inch,10inch

5inch.8inch

Traverse control type

Gear motor+driver or Servo Motor +PLC


Previous:
Next:
High Speed Annealing Tinning Machine High Speed Bunching Machine High Speed Extrusion Machine Series For Cantilever Type Single Twist (Cable Laying) Machine High Speed Ultra Fine Wire Bunching Machine enamelling machine drawing machine twisting machine drum twister fine wire buncher

RELATED PRODUCTS

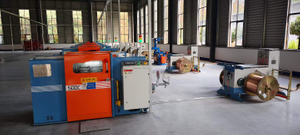

0.03-0.50mm Tiny Ultra Fine Alloy Copper Wire Annealing Tinning Making Bunchers Machine
