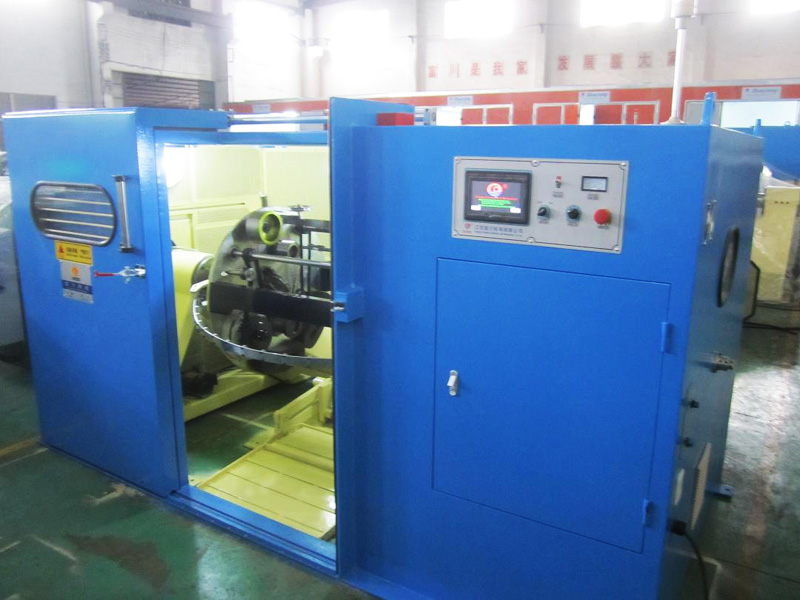

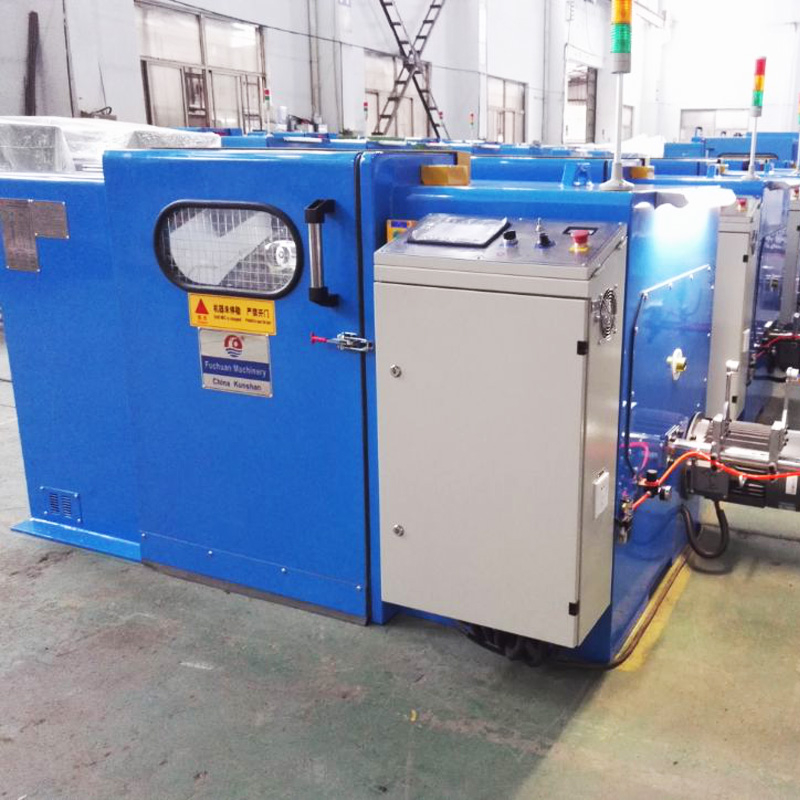

FC-650P
Equipment model
FC-250B
FC-300B
FC-400B
FC-450B
Twisting usage
Apply for the bunching of aerospace,medical instrument,cellphone,notebook
And ultra fine conductor(above seven pcs of alloy wires,tinned wires,silver jacketed wires and enamelled wires)
Single wire dia(mm)
0.03-0.18
0.04-0.28
0.05-0.32
0.05-0.32
Stranding section area(mm2)
0.0049-0.3
0.0088-0.45
0.0137-1.0
0.0137-1.0
Pitch(mm)
0.8-10.8
1.6-21.6
3.1-33.3
3.1-33.3
Direction of lay:optional for right or left
Take up bobbin
200-250
250-300
300-400
300-450
Max rotating speed
4000rpm(8000TPM)
3500rpm(7000TPM)
3000(6000TPM)
Main motor power:3.7KW
Inverter power:3.7KW
Tension control:PLC+touchscreen +magnetic powder clutch,ensure the constant tension from empty to full bobbin
Magnetic powder clutch
0.3kgf
0.6kgf
Protection:automatically brake/stop 1)wire inside and outside is broken 2)the preset length is arrived
Brake mode
Electromagnetic brake
Traversing method:rolling wire with ring drive units,winding pitch and width are adjustable
