Low Noise 7 PCS Alloy Wire Bunching Buncher Machine with Touch Screen Operation


Availability:



Inquire Add to Basket

Driven Type:
Electric
Condition:
New
Certification:
CCC, ISO, CE
Warranty:
12 Months
Automatic Grade:
Automatic
Mould Life:
>1,000,000 Shots

Product Description

Low Noise 7 Pcs Alloy Wire Bunching Buncher Machine With Touch Screen Operation
FC-1000B-2 large wire high speed bunching machine and double twist bunching machine buncher machine
Wire bunching stranding machine twisting machine cabling machine wire making machine
China Best Bare Copper wire buncher wire bunching machine
Copper Aluminum Wire cable bunching machine stranding machine buncher
twisting machine wire buncher bunching machine
B type high speed twisting machine and double twist machine

1. Characters:
With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, the machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch, easy to operate.

2. Usage:
It is applied to the twisting of above 7 pcs of bare copper wires, tinned wires, silver jacketed wires and enamelled wires and double twisting for core wires.

3. Parameters:

Equipment model	FC-500B			FC-650B		FC-650B-2			FC-800B
Twisting usage	Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enameled wires),double twisting for core wires.
Single wire diaφ(mm)	0.08-0.45		0.15-1.04			0.37-1.7				0.37-1.7
Stranding section area	0.05-2.5		0.35-6.0			1.0-16				1.0-16
Core wire single wire diaφ(mm)	0.5-1.5		0.5-3.0			1.0-4.0				1.0-4.0
Core wire stranding outer dia(mm)	1.0-3.0		1.0-6.0			2.0-8.0				2.0-8.0
Pitch(mm)	6.3-52.3		11.6-100			20-160				23-147
Direction of lay	Optional for right or left
Take up bobbin(mm)	Dia500	Dia630				Dia630				Dia800
Max rotating speed	3000rpm(6000TPM)	2000rpm(4000TPM)				1600rpm(3200TPM)				1600rpm(3200TPM)
Main motor power	5.5kw	7.5kw				11kw				15kw
Inverter power	5.5kw	7.5kw				11kw				15kw
Tension control method	Magnetic powder clutch+PLC+touchscreen,ensure the constant tension from empty to full bobbin
Magnetic powder clutch	1.2kgf		5kgf				10kgf			10kgf
Protection	1.wire inside and outside is broken,automatically brake/stop 2.The preset length is arrived
Brake mode	Electromagnetic brake
Traversing method	Rolling wire with ring drive units,winding pitch and breadth are adjustable
Operation mode	Touchscreen operation
Dimension(mm)	2680L1250W1500H				3300L1550W1800H			3400L1600W1800H			4600L2000W2000H

Model FC-1000B large wire high speed bunching machine and double twist bunching machine

1.1 Japanese Technology, product in China

1.2 Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.

Characteristics:

2.1 Latest developed machine.

2.2 This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),

2.3 low power, small floor place ,low noise and other merits.

Specification:

Equipment models	FC-1000B
Twisting usage	Apply for the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Single wire dia(mm)	φ0.30-φ1.7
Stranding section area(mm²)	6.0-35.0
Core wire single wire dia	φ2.0-φ5.0
Core wire stranding outer dia	φ4.0-φ10
Pitch(mm)	35-200(12zones)
Direction of lay	Optional for right or left
Take up bobbin Outer diaboreouter width	φ1000φ80750
Max rotating speed	1000(2000twist)
Main motor power	18.5KW
Inverter power	18.5KW
Tension control method	Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	20kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	4000L2200W2100H

Model FC-1600B large wire high speed bunching machine and double twist bunching machine

The technology of this machine is brought from Japan and put in production in JiangSu

Merits: It is the latest developed machine. This machine replace the traditional model 400 tube bunching machine with the high productivity(it is 4.5times than tube machine for the 1+6 conductors normal bunching),low power, small floor place ,low noise and other merits.

Equipment models	FC-1600B
Twisting usage	It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Single wire dia(mm)	φ0.50-φ2.52
Stranding section area(mm²)	16.0-95
Core wire single wire dia	φ3.0-φ10.0
Core wire stranding outer dia	φ8.0-φ20.0
Pitch(mm)	80-350(12zones)
Direction of lay	Optional for right or left
Take up bobbin Outer diaboreouter width	φ1600φ801180
Max rotating speed	600(1200twist)
Main motor power	30KW
Inverter power	30KW
Tension control method	Touch screen+ PLC+ magnetic powder clutch, it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	40kgf
Protection	Machine will automatically brake when wire inside and outside is broken, the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units, winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	5000L3000w3000H

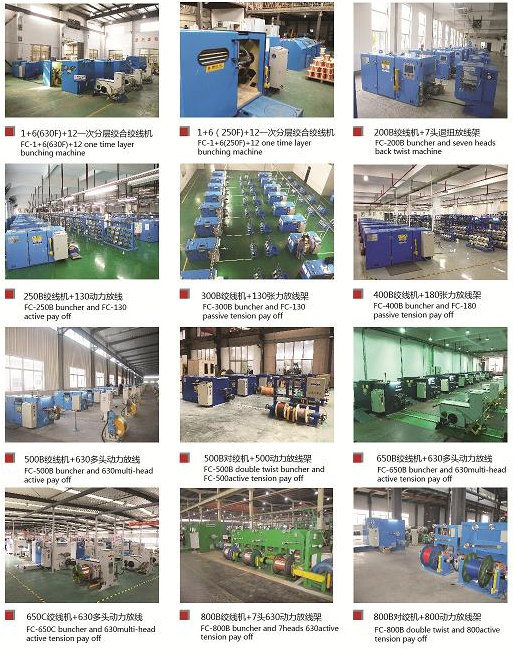

4. Machine Show

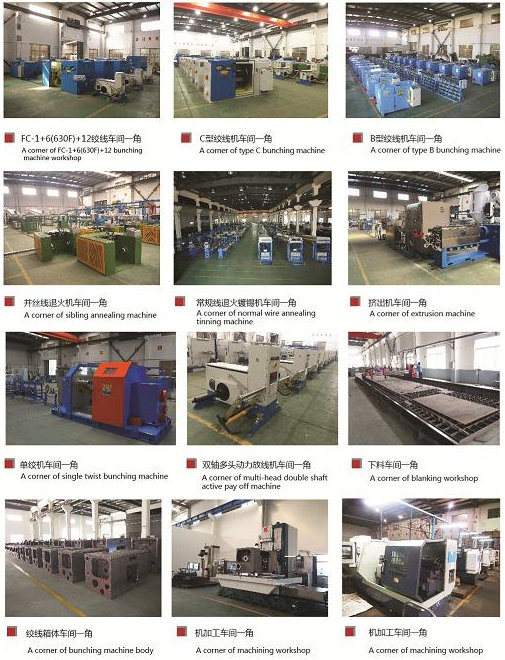

5. Cornor of Workshop

6. Customer Show

6. Fair Show

6. Certificates & Honor & Patents

7. For more details, please feel free to contact with me in any time:

And FUCHUAN always sincerely welcome for your visit and cooperation.
