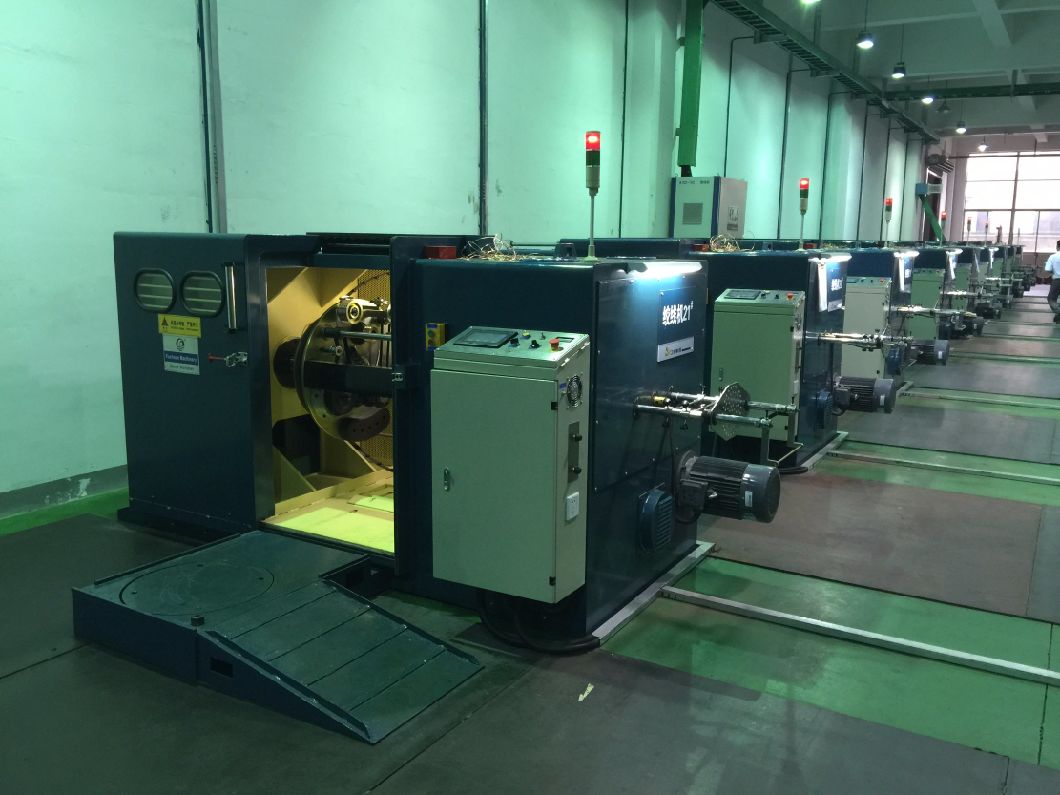

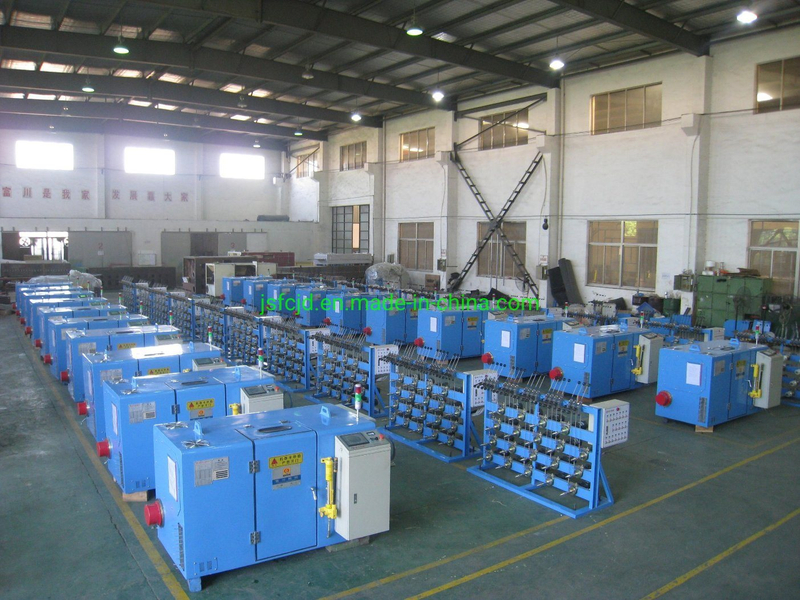

PLC Pitch Touchscreen Control 0.35-6.0sq mm Copper Wire Twister Buncher Bunching Machine Winding Drawing Extruder Machine
-
Electric
-
New
-
ISO
-
12 Months
-
Automatic
-
300,000-1,000,000 Shots
A.Main performance parameters of FC-650B-6 automatic high speed bunching machine (replace of the capstan wheel to change the lay length).- Usage:It is applied to the stranding of bare copper wire, tinned wire, copper covered aluminum wire, lacquer wire and alloy wire and so on. 1+6 may twist instead of bunching.
3.Outer diameter of wire: φ0.84~φ3.2mm ;
4.Cross s ection area: φ0.40~φ6mm 2
5.Size of take up spool: φ630mm×430mm×φ125mm(according to client's drawings to make).
6. Maximum rotating speed:2000 rpm(4000twist),in normal working speed1800rpm(3600twist).
7.Type of traverse: φ30mm rolling ring traverse, winding pitch and breadth are adjustable.
8. Standard lay length: 34 section 11.6~100mm (enclose list of standard lay length).
9. Main motor: 7.5KW AC motor +frequency converter
10. Weight of copper load: about 400kg
11. Direction of strand: optional for right or left, only need to pull the reverse rod of the traverse by hands to adjust the lay-length, easy to operate.
12. Brake: electromagnetic brake for external break, automatic stop when wire reach setting meter.
13. Tension control: take up tension is controlled by magnetic powder clutch, PLC follows up and regulates tension constant tension.
14. Whole machine d rive bearing: main shaft is from Sweden SKF bearing,other is adopted imported Japan NSK bearing.
15. Synchronization strap: with imported from American .
16. Spool from top to bottom: it is adopted manual hydraulic pump l iftin g.
17. Way of spindle lubrication: butter lubrication.
18. Index of noise: lower than 8 2 dB
19. Dimension: 3300 L ×1450 W ×1650 H(mm)
20. Weight: 4500Kg
21. Coating: Ral5015sky blue (may according to customer's requirements).
22. Package: simple waterproof packing
23. Direction: this machine is on your left, when you are in the face of front door, and pay-off on your right (may according to customer's requirements to make).
24. Sealing of machinery door: seal of plastic.
25. Spindle housings sealing: mechanical block oil ring
