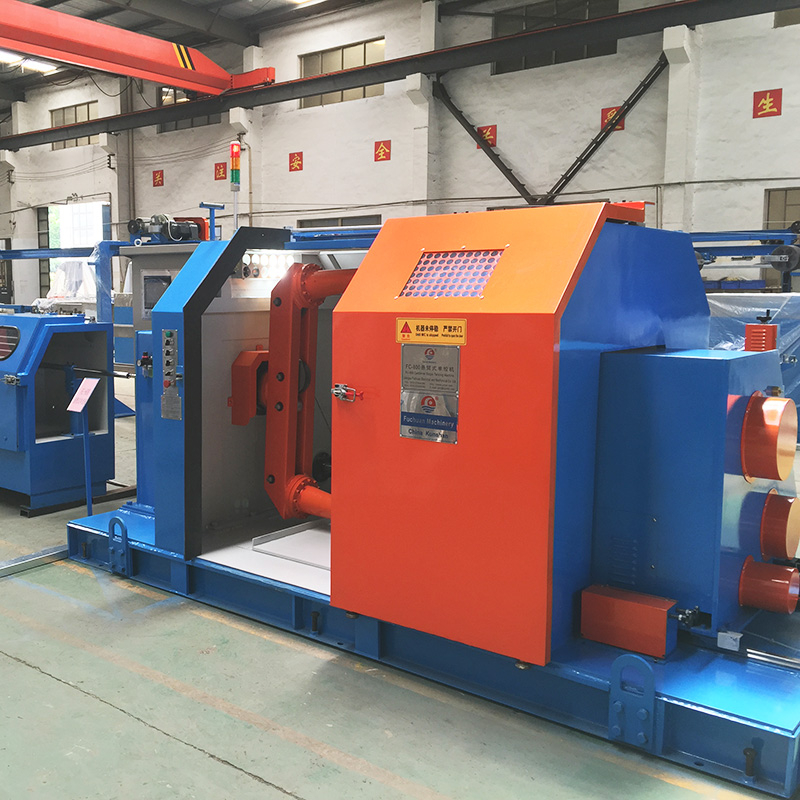

FC-800
Equipment model
FC-630
FC-800
FC-1000
FC-1250
Usage
It is mainly used in cable laying of computer wires,such as data cable and control cable.It may synchronize central coil tapping and side coil taping and compress conductor stranding.The entire machine is consists of pay off rack,central bundler,side pay off rack for the central coil tapping set,single twist(cable laying)machine and electrical control cabinet.
Applicable dia(mm)
0.6-3.0
1.5-4.0
1.5-5.0
2.0-6.0
Max twist outer dia(mm)
10
12
20
25
Pitch(mm)
40-200
45-260
50-300
50-350
Direction of lay
Free option to S Z
Take up size
630
800
1000
1250
Rotating speed
800
600
500
450
Traverse type
According to bobbin rotate speed and reciprocating motion to stepless adjust
Take up tension
Pneumatic tension automatic regulate
Brake mode
Pneumatic booster brake
Bundling type
Central bundling or side bundling
Replace pitch mode
Computer pitch
