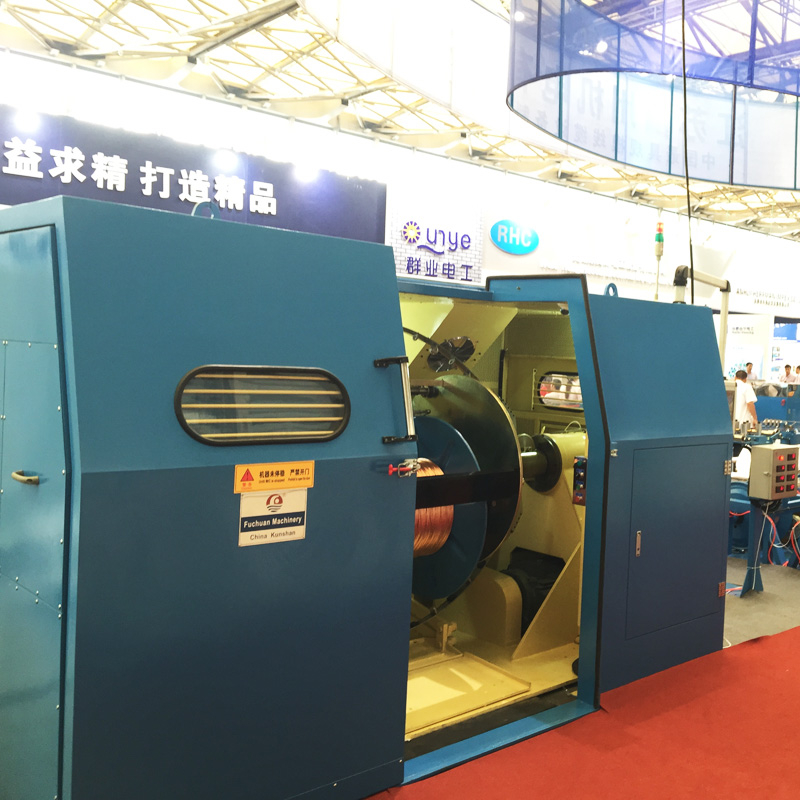

Series Of Model B Large Wire High Speed Bunching Machine
Apply for the twisting of above seven pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires)double twisting for core wire.
-
FC-800B
-
FUCHUAN
Equipment model
FC-1000B
FC-1250B
FC-1600B
Usage
Apply for the twisting of above seven pcs of bare copper wire,tinned wires,alloy aluminium wires of BVR and RVV,double twisting for core wires
Single wire dia(mm)
0.85-2.14
1.0-2.52
1.0-2.52
Cross section
4.0-25
6.0-35
6.0-35
Core wire dia(mm)
4.0-10
6-12
6-12
pitch
35-149
41-155
47-275
Direction of lay
Free option to S Z
Take up size
1000*80*750
1250*80*950
1600*80*1180
Max speed
1000(2000TPM)
800(1600TPM)
600(1200TPM)
power
18.5KW
22KW
22KW
Tension control method
Touchscreen+PLC+magnetic powder clutch,ensure the constant tension from empty to full bobbin
Traverse method
Precious traverse or screw type polish wire traverse,winding pitch and
Width are adjustable
Lifting mode
Electric traverse rod control lifting
Protection
Internal and external wire cut off automatic brake(electromagnetic brake)
Automatic shutdown when the meter reaches
