Tinned Wire, Enamelled Copper Cable Wire, Bare Copper Wire Twisting Bunching Extrusion Machine
-
0.05-0.28mm
-
Diameter 300/250
-
3.7kw
-
0.6kgf
-
3500rpm
-
Touchscreen Operation

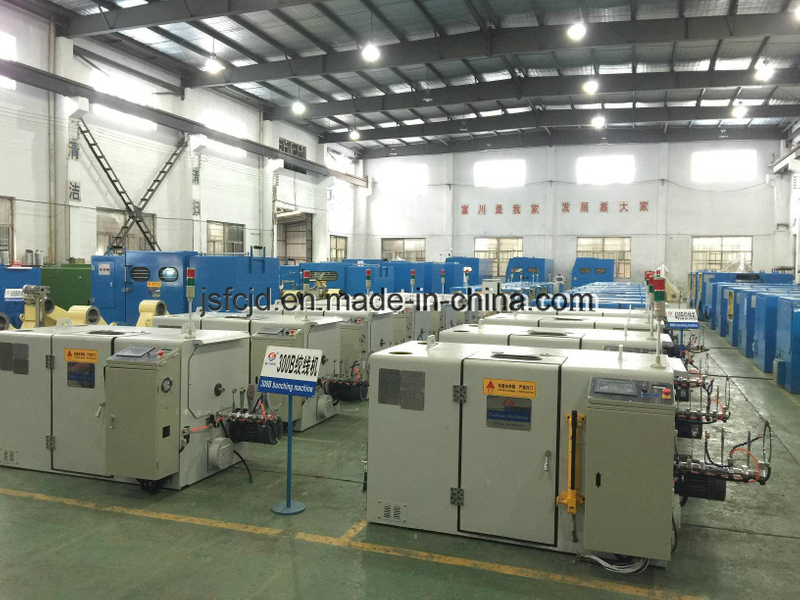

Series for Model B ultra-fine high speed bunching machine
The technology of this machine is brought from Japan and put in production in JiangSu
Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up to FC-100 active back-twist pay off machine. And meet requirements of customer to twist wire of small section area. The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.
Equipment models FC-300B Twisting usage It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires. Single wire dia(mm) φ0.05-φ0.28 Stranding section area (mm²) 0.0137-0.45 Pitch(mm) 1.6-21.6(24zones) Direction of lay Optional for right or left Outer dia*bore*outer width φ300*φ30*185
φ250*φ30*185Max rotating speed 3500(7000twist) Main motor power 3.7KW Inverter power 3.7KW Tension control method Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin Magnetic powder clutch 0.6kgf Protection Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived. Brake mode Electromagnetic brake Traversing method Rolling ring drive units,winding pitch and breadth are adjustable Operation mode Touch screen operation Dimension(mm) 2300L*1100w*1330H
